Pet Water Plastic Bottle Mould Machinery Making Blowing Moulding Machine Price

Product Description

Pet Bottle Blowing Machine Pet Bottle Blowing Machine Price
Application
Pet Bottle Blowing Machine Pet Bottle Blowing Machine Price Application
This system is ideal for start-up and small-scale companies and is reliable, heavy duty, and capable of producing a wide variety of high quality P.E.T. bottles for many industries like water, alcohol, juice, liquid detergent, vegetable oil, cosmetics, pharmaceutical and personal care items which are just a few examples.
How It Works
How Pet Bottle Blowing Machine Pet Bottle Blowing Machine Price Works
The Blow Molding system does not require highly trained operators to produce consistent quality bottles. The bottle making process starts by loading preforms into the preheater. The preheater uses a variable speed track that moves the preforms through a heating tunnel. The heat tunnel has specially designed heating elements for a consistent heating operation with minimal maintenance.
When the preforms have made one "trip" through the preheater, they are manually loaded two(three or four) at a time into the blow molder. After the bottles are formed in the blowing cycle, they are removed and the cycle continues. The finished bottles are then loaded directly onto a conveyor for filling or can be stored for later use.
Features
Pet Bottle Blowing Machine Pet Bottle Blowing Machine Price Features
2.Minimize your initial investment by starting small.
3.Add additional systems economically as your business grows.
4.Bottles of different sizes can be produced simultaneously to meet your exact requirements.
5.Change over from one size to another can be completed simply and quickly.
6.The tooling costs (molds) are low since the design of the system is simple.
7.Systems can be dedicated to produce particular bottle sizes.
8.A short operator-training period due to the simplicity of the design.
9.Maintenance costs are kept to a minimum and highly-trained personnel are not required.
Specification
Pet Bottle Blowing Machine Pet Bottle Blowing Machine Price Specifications:

Model No	900BPH	1800BPH
Material	PET/PP/PE/PC	PET/PP/PE/PC
Volume	0.2-2.5L(2-cavity)/3-6L(1-cavity)	0.05-2.5L(4-cavity)3-6L(1-cavity)
Output	900/500Bottles/Hr	1800/1000Bottles/Hr
Bottle Height(Max)	360mm	360mm
Bottle Diameter(Max)	180mm	180mm
Max Mold Plate Dimension	420x500mm(LxH)	420×500mm
Max Mold Thickness	160-240mm	160-240mm
Clamping Force	180KN	180KN
Mold Opening Stroke	200mm(Adjustable)	200mm(Adjustable)
Power Consumption	12kw	24kw
Electric Supply	220/380V/50-60HZ	220/380V/50-60HZ
Blow Molder Dimension	1.66x0.74x2.2Mtr(LxWxH)	1.66×0.74×2.2Mtr(LxWxH)
Blow Molder weight	700kgs	700kgs
Preheater Dimension	1.46x0.71x1.58Mtr(LxWxH)	1.77×0.72×1.58Mtr(LxWxH)
Preheater Weight	300kgs	500kgs

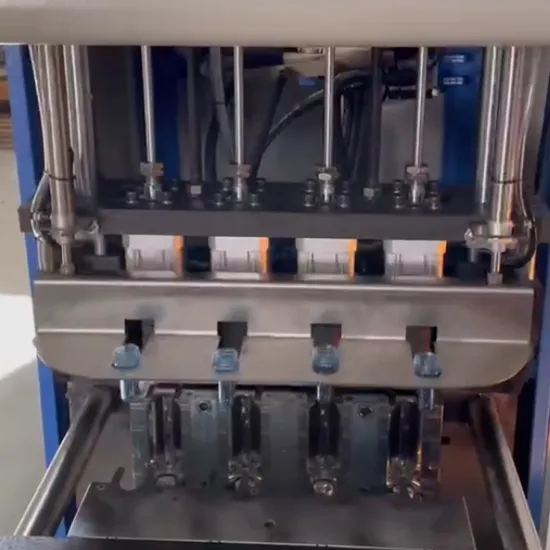

Pet Bottle Blowing Machine Pet Bottle Blowing Machine Price Show

---
