Factory Price Automatic CNC Metal Pipe Rod Tube Circular Saw Machine/Cutting Machine

Product Description

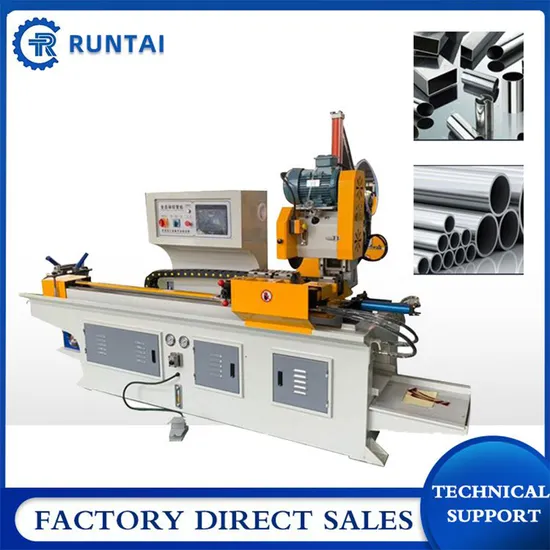

(The picture is just for reference)
The characteristics of the equipment
1. Mitsubishi servomotor-driven in feed, PLC unit control, make the feeding accurate and steady.
2. Imported hydraulic system, powerful cutting and durable saw blade
3. Linear Guide Raids with lube and vertical slideway cutting make the cutting steady and accurate.
4. Separated control of cutting and clamping, special-designed clamping method make the clamping deformation very little, especially suitable for thin pipes.
5. Robust design ensures low vibration, low noise and long-time working.
6. Automatic water cooling system makes the cutting surface smooth and of little flash and strain, also makes the saw blade long-time use.
7. The cutting scraps are treated together and the maintenance is easy.
8. Easy to operate. Extremely powerful functions make it ideal for small lot flexible cutting requirements.
9. Human/machine interface control provides user friendly operations.
10. Touch sensing screen. Numerically controlled, provides high cutting accuracy.

Specification/model	RT-425CNC Servo feeding
	Servo tail material , upper and lower clamping
Saw blade drives gearbox	model 425(all-gear drive)
The largest pipe cutting ability	Φ70 mm
	(several small tubes can be cut at one time)
Maximum once feeding material length	700mm (can be customized)
Clamping mode	hydraulic oil cylinder (upper and lower clamping)
Machine head cutting mode	hydraulic cylinder
Feeding material mode	servo motor
Tail material mode	servo motor
Power of feeding servo motor	1KW
Power of tail material servo motor	400W
Saw blade drive motor	3.3/4.0KW/380V/50HZ (customizable)
Saw blade revolving speed	35/70RPM 60/120RPM
Cooling pump motor	90W
Oil pressure system	2.2KW motor
Working pressure	70KG
Machine volume	2580 * 1050 * 1850 mm
Machine weight	1600KG

---
