Planetary Extruder for Rigid PVC Films Calendering Lin

Product Description

Application

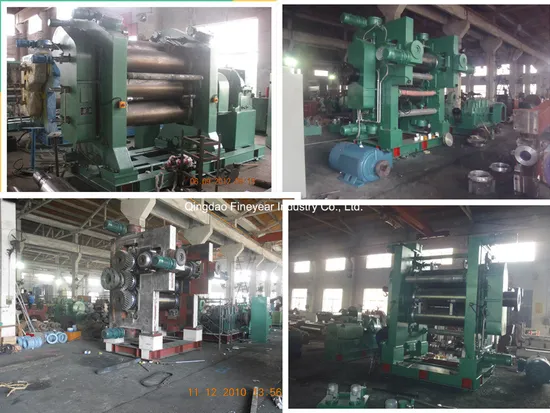

The calender is mainly used for single-face and double -face once continuous coating of card, canvas and other woven material, sheeting rubber stock , calendaring thin rubber sheet of inner liner and airtight layer of the radial tire.
Structures features
1.Roll is made of chilled cast iron alloy , through finish machining, with smooth and wearable surface, arranged in "s" shape , drilled on roll circumference, having good heating and cooling effects.
2.For increasing calendaring accuracy, set preloading device, axis cross device and bending resistance device, etc. On rolls in order to eliminate bending caused during working.
3.Single motor drives each calendaring roll, friction ratio of which can be regulated by pulling key so as to meeting different processes.
4.Emergency stop is available for protecting operators and equipment.
5.Electric control adopts imported PLC , guarateeting control on the safe side, easy operation and high automation.
Technical parameters

Model and specification	Roll diameter ×Length	Linear speed of front (m/min)	Thickness for calendering(mm)	Rolling width(mm)	Motor power(KW)	Weight(t)
XY-2I1120	360x1120	1.5~15	≥0.20	900	40	8
XY-2I1400	400x1400	1.5~15	≥0.20	1200	55	12
XY-2I1600	560x1600	2~20	≥0.20	1400	75	25
XY-2I1730	610x1730	2~20	≥0.20	1500	90	45
XY-2I2030	660x2030	2~20	≥0.20	1800	110	80
XY-2I3000	820x3000	2~20	≥0.20	2800	110	158

---
