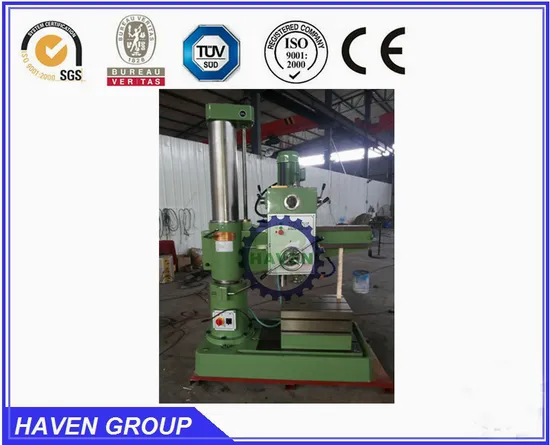

Radial drilling machine Z3032X8/1

Product Description

Z3032x8/1 High Quanlity Radial Drilling Machine
With safe and reliable feed safety machine, all parts easy operation and change.
All controls centralized on the head stock easy operation and change. Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality. Integrating technology for casting parts is excellent, ado-pting casting equipment, ensuring high quality of material for basic parts. Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, ensuring high strength and durability. Main gears are machined by gear grinding, the machine ensuring high precision and low noise. The machine with small appearance and much function, he machine widely used for drilling,counterboring,tapping, etc.
Parameters:

Model	Z3032×8/1 Z3040×8/1
Max. Drilling capacity(mm)	32/40
Distance Spindle axis to column generating line(mm)	320~820
Diameter of column(mm)	200
Spindle taper(mm)	MT4
Distance travel(mm)	240
Spindle speeds range(mm)	75~1220
Spindle speeds series	6
Rang of Spindle feeds(mm/r)	0.1~0.25
Mpindle Spindle feeds	3
Max.Distance spindle nose working surface of base (mm)	320~900
Dimension of worktable(mm)	400×400×350
Dimension of base(mm)(mm)	1370×700×160
Overall Size (mm)	1407×720×1885
G.W./N.W.(Kg)	1425/1200
Packing dimension(cm)	155×77×210
Power of Main motor (kW)	1.5

---
