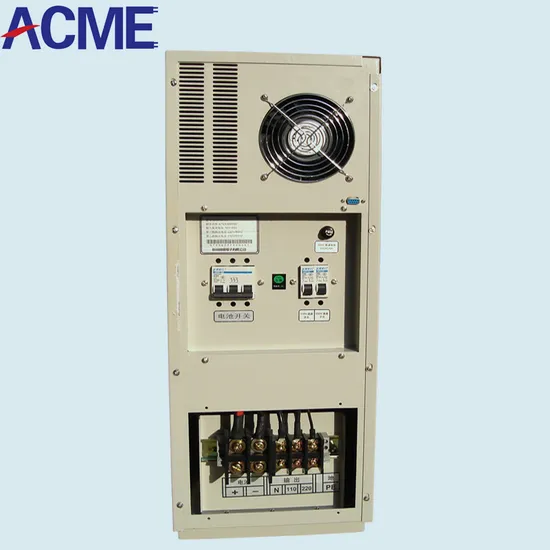

8kVA-40kVA Three Phase Online UPS

Product Description

Product introduction
Product introduction
ACMEUS series UPS for all types of computer and accurate electronic equipment needs, with professional quality, excellent performance and ease of operation as the goal. It maintains the advantages of traditional online machine, improves the protection circuit, IGBT drive proprietary technology, high-frequency intelligent charging, digital management, etc., greatly improves the application level of the frequency online machine technology.
This series of UPS can be used in personal computers, post and telecommunications, banking systems, railway transportation, electricity, scientific research and so on.
Technical features
1. Online UPS, pure string wave output, The application of dual-transformation SPWM technology, durable;
2. Liquid crystal display panel, through the LCD to switch, easy to check the working status of UPS;
3. High-power high-quality intelligent charging, charging current up to 10A, to meet the long-term power supply system charging requirements;
4. Special static switch design, power grid failure output zero interruption, bypass output time of 2ms;
5. IGBT drive proprietary technology, output short-circuit protection to ensure that not damaged by short-circuit load;
6. Built-in isolation transformer, strong load capacity, load adaptability, safe and reliable;
7. RS232 communication interface, providing remote monitoring function.
Technical parameters

Model		ACMEUS33-___K
Rating capacity		8KVA-40KVA
Input	Phase/Wire	3 PH 4W+G
	Voltage	220, 380V±20%
	Frequency	50/60Hz±5%
Control way		IGBT PWM pulse width modulation
Output	Waveform	Sine wave, THD 3%
	Voltage stability	220, 380V±3%
	Frequency	50Hz,60Hz±0.5%
	Temporary change	100% load change, ±2%
	Overload capability	120% rated current,automatically switch to bypass (BYPASS) after 5 seconds 150% rated current,automatically switches to bypass after 10 cycles(BYPASS)
	CF	3:1
	Load PF	0.8 Lag
Power failure conversion time (MS)		0
Static switching time (ms)		0
Batteries No.		16/30
Battery	Type	Lead-acid maintenance-free battery
	Power time	Standard 5 minutes, can be up to 8 hours (full load)
	Charge time	90% charge in 7-10 hours
Efficiency(full load)		>65%/>80%/>86%
Noise		50dc/55db/60db
Protection		Overload limit current output, Overload/short-circuit protection, burst voltage protection (220V UPS-470V, 110V UPS-240V) Off-alert suppression capacity up to FCCA level
Light		The mainpower is OK (green light) The converter is OK (green light) Bypass output (yellow light) Battery low Voltage (red light) Overload (red light) Fault (red light)
Alarm		Three segments Every 4 seconds after the power outage The battery will be exhausted, every second to tweet Continuous lying in the event of a fault or battery exhaustion
Computer Interface		9PinD Type connector(Option)
Ambient temperature humidity		0~40ºC Up to 95% without condensation
Size(mm)		450×980×550/580×1180×490/560×1200×720
Weight(KG)		128-510KG
Input device		Terminal row

---
