Washing Plastic HDPE LDPE Film Bags Fibers Squeeszer Drying Extrusion Machine

Product Description

The Plastic HDPE LDPE Film Bags Fibers Squeezer Drying Extrusion Machine is primarily engineered for efficiently drying film materials.
Working principle and application
Utilizing innovative screw pressure technology, this machine expertly extracts moisture from a variety of washed plastic films, including agricultural film, PP woven bags, large packing bags, PE farm film, ton bags, and nylon materials. Its uniquely designed screw and gearbox ensure superior drying performance. When these materials are processed through pelletizing or granulation, the machine significantly enhances capacity, achieving remarkable dewatering rates between 95% and 99.5%, tailored to customer specifications for plastization or semi-plastization.
Advantage of this machine
1. The specially crafted screw and pressure system enable extraordinary drying efficiency, surpassing conventional machinery capabilities.
2. Exceptional dewatering efficiency: Achieves up to 98% moisture removal.
3. Cutting-edge technology with low power consumption and minimal noise ensures easy operation, safety, and a reasonable price point.
4. This mechanical pressure dewatering system offers significant space and power savings compared to traditional hot air dryer systems.
Project summary:

NO.	Item.	Spec.
1	Material	washed PP ,PE film
2	Capacity	output:600-800kg/hr
3	Electricity power	380V,50Hz,3 Phase
4	Finally products moisture	≤2%
5	Installed power	150KW for whole plant
6	Power consumption	70% of installed power
7	Plant area	> 36 Square meter > 3 meter height Estimate line size: 6m(Length)* 2 m(Width)* 3 m(Height) we can make the line turn as I or L shape to fit the buyer's plant
8	Manpower	1-2 Persons required
9	Payment terms	30% by TT as deposit; Balance paid by TT before shipment.
	Delivery time	40 Working days since receive the deposit
	Package	Packing by film.
	Warranty Period	12months since the date of BL.
	Shipping	By sea
	Offer validity	60Days

Machine photos
Screw and barrel of the machine
Die of the machine

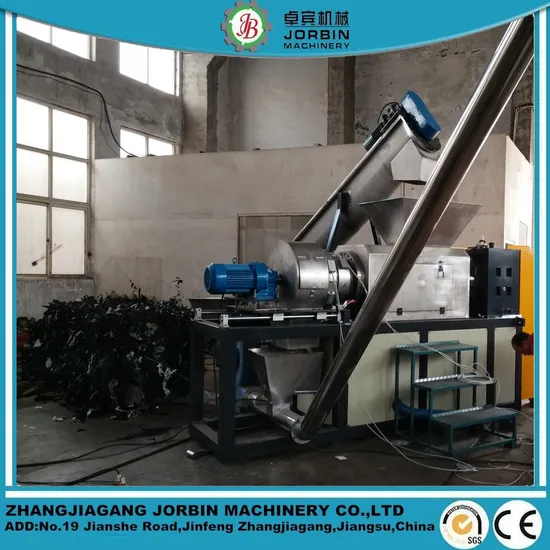

Machine under production
Machine all parts:

Item NO.	Item name	Quantity	Power
1	Belt conveyer	1 set	2.2kW
2	Main machine	1set	110kw
3	Pelletizing	1 set	5.5kw
4	Wind transmission system	1 set	5.5kw
5	Storage Silo	1 set	_
6	Electrical control box	1 set	_

Please feel free to reach out for more detailed information about the machine. 1. We supply the following essential documents with the machine:
Machine layout Electrical diagram Machine certification Comprehensive manual/maintenance guide 2. We offer a one-year quality guarantee. During this period, should any machine malfunctions be attributed to our responsibility, we will promptly dispatch replacement parts via DHL or other courier services within 7 working days upon receiving the complaint and will send technicians to the buyer's facility for maintenance. All related expenses will be covered by us.
3. After the one-year guarantee period, we can provide payable spare parts and visiting technician maintenance services. We ensure rapid delivery of any required parts as swiftly as possible.
4. We are confident that our quotation aligns with your needs and would be pleased to provide any additional information you may require.

---
