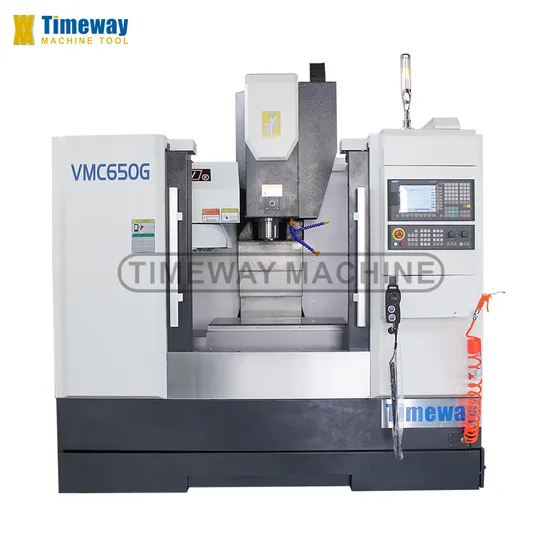

Disc-Type Atc Milling Vertical Machining Center Vmc650g

Product Description

Vertical Machining Center
Product Description
Applications of the vertical machining center:
The VMC series vertical machining center is a vertical machining center controlled by CNC (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex, precise, small batch, and multi-variety parts.
Equipped with 4th axis for machining round pieces.
Equipped with B+C axis cradle type NC rotary table.
Equipped with A+C axis NC rotary table.
Equipped with swivel head (B-axis) + NC rotary table (C-axis). Standard Accessories: FANUC 0i MF CNC system; X/Y: Linear guide rails, Z: Sliding guide rail; Taiwan BT40 spindle, 8000rpm; Taiwan disc-type ATC with 24tools; Full enclosure; Manual pulse generator (MPG); USB & LAN interface; Work lamp; Pilot lamp; Cooling system; Centralized automatic lubrication system; Spindle air blast; Air gun; Milling arbor & chuck; Heat exchanger for electric cabinet; Tools & tool-box; Leveling wedge & bolts;Operation manual (English) Optional Accessories:MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND; 4th axis; Direct driven spindle (10000, 12000, 15000rpm); Circular coolant nozzle; Coolant through spindle (CTS);Spindle oil cooler; Air conditioner; Chain-type chip conveyor; Water gun; Safety door; Tool measurement system; Workpiece measurement systemVMC-650G

Worktable size (LxW)	mm	1000×420
T-slot (No./width/pitch)	mm	5-18-80
Loading capacity	kg	400
Longitudinal travel (X)	mm	700
Cross travel (Y)	mm	450
Vertical travel (Z)	mm	450
Distance from spindle nose to table	mm	130-630
Distance from spindle center to column	mm	495
Spindle taper	-	BT-40
Spindle speed	rpm	8000
X/Y/Z-axis rapid feed speed	m/min	48/48/48
X/Y/Z-axis servo motor (FANUC)	-	β12/β12/β22
X/Y/Z-axis positioning accuracy	mm	±0.003/300
X/Y/Z-axis repositioning accuracy	mm	±0.003/300
Main motor power	kw	7.5/11
Air pressure source	kg/cm2	6/8
Power capacity	Kva	18
Tool magazine capacity	T	12 (Crousel)
Guideway type	-	Linear
Machine weight	kg	3500
Machine dimensions (LxWxH)	mm	2400×1900×2400

Detailed Photos

After Sales Service
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the
machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer
(relative cost born by customer). Company Profile
"TIMEWAY MACHINE" is a registered Chinese business business located in Zhengzhou city, in the center of China, and has been opearting in the machinery industry for many years.

Our factory is the joint-stock enterprise, founded in 1946, has 50 years of machine tool manufacturing history.Occupies more than 500acres, built a foundary, machining, heat treatment, assembly, quality inspection, painting, logistics and other advanced production lines.

Our product mainly cover lathes, Milling, Drilling, Gringding, Sawing, Shaping/Slotting and related accessories&tools, etc.
FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
