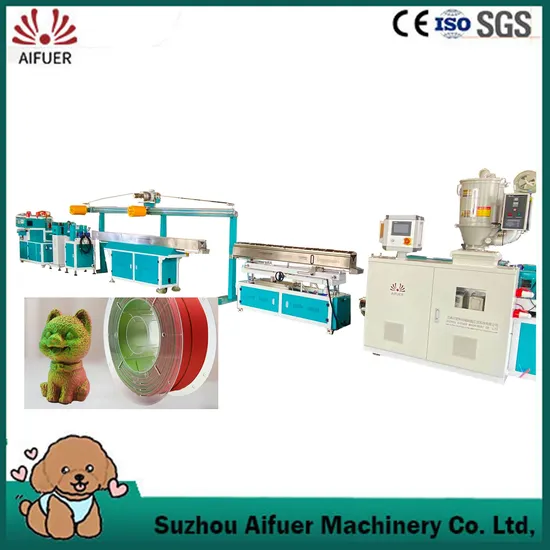

PETG Filament Fdm 3D Filament Extruder Machine Extrusion Line

Product Description

:

1	Hopper dryer (50KG)	1set
2	SJ-45/28 single screw extruder	1set
3	Siemens PLC (Touch control Panel /Closed Loop system)	1set
4	Mold&die(1.75mm)	1set
5	Air cooling system for high temperature raw material	1set
6	Hot water tank for low temperature raw material or re-cooling	1set
7	Water cooling tank	1set
8	Laser Diameter measurement	1set
9	Servo haul off machine	1set
10	Servo winding machine	1set
11	Chiller	1set

SJ45-28: 15~25kg/h
This filament extruder shown in the video is our SJ45-28. It is the same as our big filament extruder machine, adopting servowinding and tension controlled storage system.
Screw dia.:¢45mm
L/D: 28:1
Screw max. Rotation speed:72 rpm
Heating zone : 3 zones
Heating power: 1.2* 4kw
Heating ring: Stainless steel cover Heating method: Ceramic 2heater
Main motor power:2.2KW motor
Connection method for motor and reducer: Straight connection
Cabinet material:aluminium alloy
Center height: 960mm
Material: stainless steel 304
Air cooling table length: 3000mm
Forming table length: 3000mm
Air cooling platform height: 900mm
Variable frequency control
Fan outlet *4

Raw material	PEKK ,PEEK ,PPA,PAS etc
Capacity	15-20kg/h
Filament dia.	1.75mm
Filament dia. tolerance	+/-0.03-0.05mm
Speed	Adjustable

We design and manufacture customized extrusion lines. We are familiar with kinds of plastic raw materials to help our customers choose the most suitable machines with the best quality. We are looking forward to cooperate with your to jointly seize opportunities, create new values towards prosperous, stable and sustainable development in the future.

---
