Warehouse Electric Cargo Lift Goods Lift Platform Material Elevators Freight Elevator

Product Description

Product Description

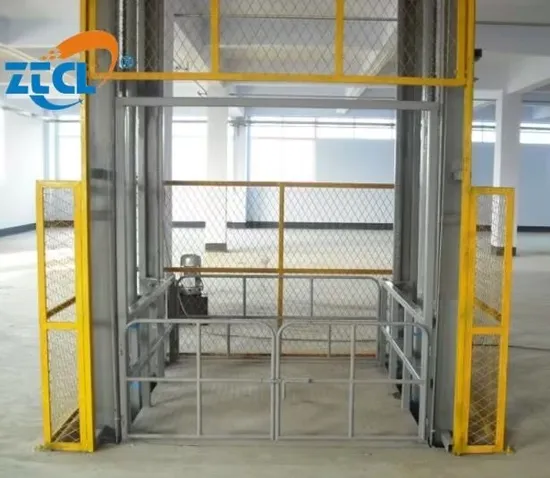

ZTCL Rail lifting platform (Rail-type lift platform) is a non-hydraulic scissor lifts. From the mobile way points are mobile lifting platform. Can achieve multi-point control, interaction between the upper and lower floors interlock, improve safety performance.
It is droved by the electric and hydraulic system, the lift platform is lifted up and drops down along the truck; it is installed in the pit or the ground floor to convey the goods from one working level to another. The control panels are available at the designated floors and one the lift platforms.
Product Parameters

Model	Lift height (mm)	Load capacity (kg)	Platform (mm)	Min height (mm)	Power (kw)
ZTSJD0.5-3	4500	500	2000*1500	150	2.2
ZTSJD1.0-3.5	4500	1000	2000*1500	150	3
ZTSJD2.0-4	4500	2000	2000*1500	150	3
ZTSJD3.0-4.5	4500	3000	2000*1500	160	3
ZTSJD0.5-7.5	7500	500	1200*1200	150	1.5
ZTSJD1.0-7.5	7500	1000	1800*1400	150	2.2
ZTSJD2.0-7.5	7500	2000	2000*1500	150	2.2
ZTSJD3.0-7.5	7500	3000	2000*1600	160	3
ZTSJD1.0-10.5	10500	1000	1800*1400	150	2.2
ZTSJD1.0-14	14000	1000	1800*1500	150	2.2
ZTSJD3.0-4.5	4500	3000	5000*3000	160	4
Lift height,loading capacity and platform both are customized

Detailed Photos
Features
1. This lifting platform has antiskid plate to prevent slipping, it is enough safe when working.
2. This lifting platform is equipped with the guardrail to guarantee the safety.
3.Manual pump:it can move up the nearest floor and open the door when you meet an emergency.
All of our products are under higher quality control in the assembly line and been precisely tested before being put on the worldwide market.
4.Hydraulic drive and chain lift.
5.Crane-type chain make the lift life and strong safety.
6.No need pit construction for usage.
7.Closed structure is easy to clean
8.Without restriction of space, they are widely used in lifting operations over large areas, such narrow space as warehouses, factories, highways and stairwell place where we could not dig pits.
Product show
FAQ
Q1. What about the delivery time?
Answer: It usually takes about 10 working days after we receive the deposit.
Q2. What kind of payment do you support?
Answer: T/T, L/C, West Union, T/T is usually.
Q3. How to proceed an order for the lift?
Answer: Firstly, tell us your requirements, if you can send a photo where you will use the lift, it will be better.
Secondly, we send you our suggestions and quote according to the practical.
Q4. How to transfer the lift machine?
Answer: It is usually shipped by sea. Plywood package and LCL in a 40' container.
Q5. Is it OK to print my LOGO on the lift?
Answer: Yes. Please inform us formally before our production and send us your high pixel LOGO.
Q6. How can I get the after-sales service?
Answer: Contact with us if you have any question or need professional support. We will try to solve your problem in 24 hours, and arrange the delivery of spare parts in 48 hours.

---
