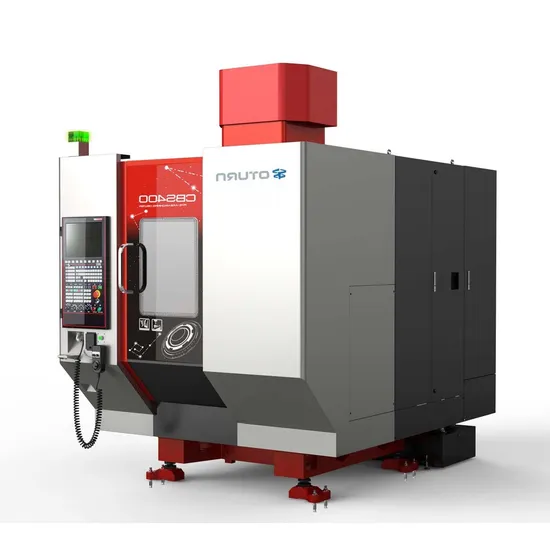

The high-speed precision five-axis bridge type machining center CBS400 has the characteristics of high rigidity, high precision and high efficiency machining. CBS series machine tools adopt a bridge structure layout, and the XYZ axis movement is not affected by the AC axis, allowing high-precision processing to be maintained for a long time; the entire machine uses finite element analysis to design each component to provide the best overall stability.
The three-axis rapid displacement is 30M/min, the T-T tool changing time only takes 5 seconds, and there is no alarm for 24 hours when the tool magazine is fully loaded. Each machine's trial processing sample has passed the running machine and three-dimensional inspection, ensuring the high efficiency and continuous stability of the machine tool after leaving the factory. . It is suitable for concave and convex models with complex two-dimensional or three-dimensional shapes that require one-time processing of five-axis linkage. It is more suitable for small and medium-sized batches of multi-variety processing and production, and can also be used for automatic line mass production.
Adopting the latest C80 plus system, 15-inch large LCD screen, tool path dynamic graphic display, intelligent alarm display, self-diagnosis and other functions make the use and maintenance of the machine tool more convenient and faster; the high-speed bus communication method greatly improves the data of the CNC system Processing power and control performance, the program storage capacity is increased to 4G, and the pre-reading capability is increased to 3000 lines/second, making it easy to read data quickly and accurately. Efficient transfer and online processing of large-volume programs.
Product Parameters

Item		Unit	CBS400
Travel	Travel of X/Y/Z axis	mm	460 x 390 x 400
	Distance from spindle end face to work table	mm	155-555
	The maximum distance from the center of the A-axis 90° spindle to the C-axis disk surface	mm	315
	Max. Working size	mm	Φ400 x 400
C-axis turntable	Turntable Dia.	mm	Φ400
	Turntable T-slot/Guide width	mm	14H7/ 25H7
	Allowable load	kg	400
Feed of 3 axis	X/Y/Z axis fast move	m/min	30/30/30
	Cutting feed rate	mm/min	0-12000
Spindle	Spindle specification (installation diameter /transmission method)	mm	120/Built-in
	Spindle taper	m/min	E40
	Max. Spindle speed	mm	30000
	Spindle Motor Power (Continuous/S3 40%)	Kw	11 / 13.2
	Spindle Motor Torque (Continuous/S3 40%)	N.m	11.5 / 13.8
Tool	Tool magazine capacity		26
	Tools change time(T-T)	s	5
	Maximum tool diameter	mm	80
	Max. Tool length	mm	200
	Max. Tool weight	Kg	3
Guide	X-axis guide (size/number of slides)		35/2
	Y-axis guide (size/number of slides)		45/2
	Z-axis guide (size/number of slides)		35/2
3-axis transmission	X-axis screw		Φ40 × 10
	Y-axis screw		Φ40 × 10
	Z-axis screw		Φ40 × 10
5 axis	A-axis rated/max speed	rpm	30/60
	A-axis rated/max cutting torque	Nm	940/2000
	C-axis rated/max speed	rpm	100 / 150
	C-axis rated/max cutting torque	Nm	185 / 318
	A-axis positioning/repeatability	arc-sec	10 / 6
	C-axis positioning/repeatability	arc-sec	8 / 4
3-axis accuracy	Positioning accuracy	mm	0.005 / 300
	Repeat positioning accuracy	mm	0.003 / 300
Lubrication system	Lubrication unit capacity	L	0.7
	Lubrication type		Grease lubrication
Cutting fluid	Water tank capacity	L	300
	Cutting pump parameters		0.32Mpa x 16L/min
Others	Air demand	Kg/cm2	≥ 6
	Air source flow	mm3/min	≥ 0.5
	Battery capacity	KVA	30
	Weight	T	5
	Machine size (L x W x H)	mm	3360 x 2910 x 2850
