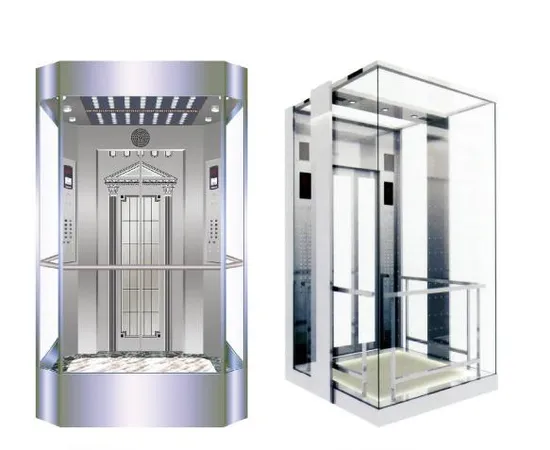

Factory Price Square Glass Panoramic Elevator Lift for Shopping Mall

Product Description

Product DescriptionProduction Descopriton
DEMAN traction type elevator applies new generation permanent synchoronous and gearless host and high performance digital variable frequency technology and grou computer combined control technology,It can save more than 33% of the energy,What is more,It saves the mechanical energy loss in the traditional gearbox transmission and further enchances the efficiency.The Features of Traction Elevator:
1.It applies rucksack style and gantry style elevator structure according to door opening requirements of the housing structure
2.VVV drive technology:Elevator special-purpose micro-computer control is smooth and comfortable
3.Specoal-purpose traction machine rack is fixed in guiderail. The building needs no bearing of any outer force.
4.Automatic special-purpose door machine:Variable frequency energy-saving,safe and reliable
5.UPS(spare mains) can emergently release the passengers in the power failure
6.Direct dialing of external line:under emergency conditions, you can call anybody you want.*The car cabin decoration
*The Human-machine interface
*The Control System
Our factory uses Microcomputer group supervision management system.
Duty on/off rush-hour running mode:IT satisfies the running requirements in the rush hours of duty on/off the public occasions in the office and etc, Even operationn mode:It adopts the minimized waiting period dstribution principle with the prompt and reasonable elevator response, Idle running model:The elevators have been evenly distributed in the designated area to wait for call in idle times in order to guarantee the quick and timle response towards the outer calls
*The attachment of decoration
Different Material Handrail :Hairline stainless steel,Mirror Stainless steel,Golden etched ,rose golden etching,wooden
Product Parameters

Loading capacity(kg)		450/6			630/8						800/10					1000/13						1150/15
Speed(m/s)		0.5	1.0	1.5	1.0	1,5	1.75				1.0	1.5	1.75	2.0	2.5	1.0	1.5	1.75	2.0	2.5	3.0	1.0	1.5	1.75	2.0	2.5	3.0
car net size(mm)	Width	1150			1400						1400					1600						1700
	depth	1100			1100						1350					1500						1500
Door opening way	Center opening
Door-opening size(mm)	Width	700			800						800					900						1000
	Height	2100			2100						2100					2100						2100
Hoistway net size(mm)	Width	1700			2000						2000					2200						2300
	depth	1750			1750						2000					2200						2200
Machine room size(mm)	Width	1700			2000						2000					2200						2300
	Depth	1750			1750						2000					2200						2200
	Height	2500			2500						2500					2000						2500

Packaging & Shipping
Company Profile •ISO9001
•Well made products and very competitive price
•Near Shanghai Port(one of biggest port in china)
Suzhou Lefeng Elevator Accessories Co.,Ltd is equipped with the world's first-class production equipments,the internationalized production workshops and the large-scale assembly flow including the advanced laser cutter imported from the United States.The work-piece cutting fulfills the more attractive and more accurate conditions.The highly effective,precise and intellectual runn ing modes ensure that LEFENG elevator are well-received by vast users over the years.

Our factory supply all compents of elevator,such as controller,traction motor,door operator and landing door,guide rail,guide shoes,cabin and etc. We also supply OEM elevator and complete elevator,passenger elevator,home lift,cargo elevator,car lift,panoramic elevator,hospital elevator.

---
