High Precision, Fsgz Series PLC Guideway Grinder

Product Description

Product Parameters

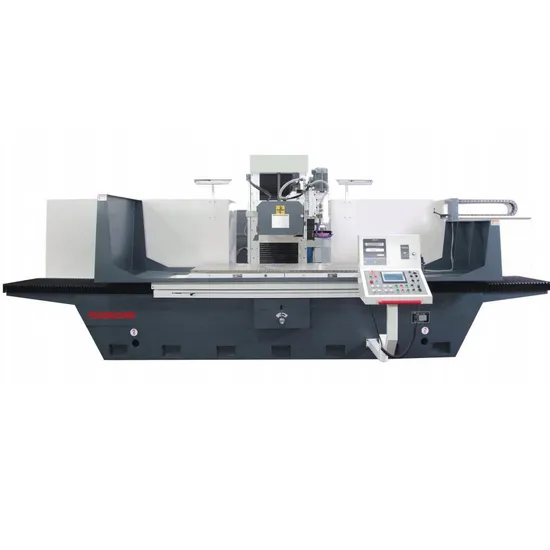

FSGZ series PLC guideway grinder
Specifications

ITEM /MODEL			FSGZ80160NC	FSGZ80220NC	FSGZ80300NC
•Working area
	Table size	mm	810*1600	810*2200	810*3000
	grinding size by H head	mm	810*1600*670	810*2200*670	810*3000*670
	grinding size by V head	mm	680*1100*670	680*1700*670	680*2500*670
	travel of V grinding head	mm	210	210	210
	rotation angle of V spindle (manual)	o	±3	±3	±3
	max loading of table	Kg	2000	2400	3500
•Moving axis
	fast moving speed of table	m/min	525	525	525
	fast speed of both head front and back	m/min	0.05 2	0.05~2	0.05 2
	intermittent feed of H grinding head front and back	mm/t	150	150	150
	manual feed rate of H head front and back	mm/div	0.005	0.005	0.005
	Fast speed of H head in vertical way	m/min	0.05~2	0.05 2	0.05 2
	auto feed ofH head in vertical manual feed of H head in vertical way	mm/t	0.0050.05	0.005~0.05	0.0050.05
		mm/div	0.005	0.005	0.005
	moving speed of V grinding head	m/min	0.05 0.5	0.05~0.5	0.05~0.5
•grinding wheel
	wheel size of H grinding head	mm	500x75x203	500x75x203	500x75x203
	speed ofH spindle	r/min	960	960	960
	grinding wheel of V head		(according to the tech request)
	spindle speed of V grinding head	r/min	3004000	3004000	3004000
•motor
	H grinding head power	kw	18.5	18.5	18.5
	V grinding head power	kw	2.2	2.2	2.2
	total power	kw	40	40	40
•
	flooring space	cm	530*450	650*450	830*450
	GW(about)	kg	11000	13000	14500

REMARK: Optional Accessory: "worktable bump prevention system" is recommended for L type parts.
Company Profile
Who We Are?
Founded on March 30, 2016, HANMING aims to provide customers with excellent products and services and industrial complete equipment solutions.
HANMING has always been standing in the perspective of every customer to deal with problems and ensure the timely and efficient handling of problems. Our salesmen are experienced senior marketing engineers who have been working in the industry field for many years, and our inspectors are technical engineers, which ensure our professionalism. Our products are mainly metal cutting machine, metal forming machine and other industrial equipment.
What Do We Can Do?
The core competitiveness of HANMING is having a strict quality management system and a team that can provide excellent services. We are familiar with the machine tool industry in China and know the positioning of products in various factories. We will select the most suitable machine tools for customers and ensure that after the completion of the machine tool, we will send quality control team to each factory for inspection to ensure that the machines delivered to customers are high-quality products that have been inspected. Our inspectors are also after-sales service personnel to ensure that every after-sales service problem can be timely communicated with each factory and give timely feedback.
Our Aim:
Relying on the keen market insight, HANMING makes forward-looking decisions on the changeable market and actively deals with and overcomes the difficulties encountered by the enterprise in various periods. Today, a steady and pragmatic team leads Hanming forward to open up a new world in the industrial export industry.

---
