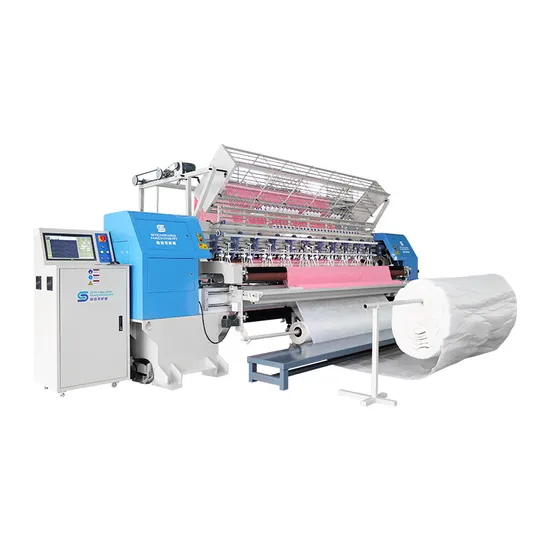

Industrial Computerized Multi-Needle Lock-Stitch Quilting Machine for Mattress Fabric with Automatic Lubrication

US$42,900.00-51,500.00 1 Set (MOQ)

Basic Info.

Model NO.
HY-128-3B
Certification
ISO, CE, Ispa
Condition
New
Number of Head
Multi-Needle
Voltage
380V/220V
Type
Computerized Quilting Machine
Stitch Length
2-5mm
Quilting Width
3300mm
Space Between Needles
25.4mm
Thickness of Quilting
Less Than 25mm
Speed of Main Shaft
450-700
Transport Package
Wooden Box
Specification
5350*1160*1800mm
Trademark
XIDENGBAO
Origin
China(Mainland)
HS Code
8452219000
Production Capacity
10 Sets/Month

Product Description

HY-128-3B Computerized Lock Stitch Multi-needle Quilting Machine Technical Specification
Model HY-64-3B HY-94-3B HY-112-3B HY-128-3B
Dimension(L×W×H)
 3800*1320*1800mm
 4650*1320*1800mm
 5780*1320*1830mm 5550*1320*1830mm
Quantity of needle bar
 3
 3
 3 3
Quilting width
 1600mm
 2400mm
 2850mm 3250mm
Space between needle rows
 76.2,152.4
 76.2,152.4
 76.2,152.4
76.2,152.4
Space between needles
 25.4mm
 25.4mm
 25.4mm 25.4mm
X-axis movement displacement
203.2mm
 305mm
 305mm 305mm
Thickness of quilting
 ≤25mm
 ≤25mm
 ≤25mm ≤25mm
Stitch length
 2~5mm
 2~5mm
 2~5mm 2~5mm
Speed of production(m/h)
 20-120 20-120 20-120 20-120
Model of needle
 16#,19#
 16#,19#
 16#,19# 16#,19#
Speed of main shaft(RPM)
 500~750
500~750
500~750
450~650
Total power required
 5KW 5KW 6KW 6KW
Voltage
 380V/50HZ
220V/60HZ
 380V/50HZ
220V/60HZ
 380V/50HZ
220V/60HZ
 380V/50HZ
220V/60HZ
Gross weight
 3200kg
 4200kg
 4500KG 5000kg
