CE Certified Wood Based Panel Wide Belt Planer Sanding Machine

Product Description

CE Certified Wood based Panel Wide Belt Planer Sanding Machine
Introduction:
The cutter shaft is imported from Taiwan, with a diameter of 180mm and a combination of 9 rotary tool rest. The second and third units adopts eccentric roller structure, which can realize the whole adjustment of both ends of the roller body at the same time (manual), without displacement error. The circumference of the abrasive belt is 2620mm, which makes the heat dissipation of the sand belt and sand plate good, and effectively prolongs the service life of the sand belt. Adding automatic edge finding compensation system to reduce the swing frequency of the sand belt to 4-6 times/min, so that the sand trail is straight instead of S-type, and improve the effect of the top coating. The belt is equipped with an automatic rectifying system to prevent the belt from running off due to the bell mouth. Equipped with sanding belt cleaning device, which can extend the service life of sand belt by 20-30%. Equipped with conveyor belt cleaning system, which can effectively ensure the surface clean, save manual cleaning. Equipped with the work piece surface cleaning system, which can save the cost of a surface cleaning aircraft
Technical Parameters:

Model	WT KRC1300
Sanding structure
Working Width	1300mm
Min Working Length	490mm
Working Thickness	10 -150mm
Feeding Speed	4-20m/min
Total Power	91Kw
Motor for First Unit	37Kw
Motor for Second Unit	22Kw
Motor for Third Unit	22Kw
Feeding Motor	4.0Kw
Lifting Motor	0.75Kw
Motor for Brush Roller	1.5Kw
Abrasive Belt Size	1350×2620mm
Volume of Dust Collection Device	15000 m3/h
Overall Dimensions	2235×3050×2450~2600mm
Net Weight	7200Kgs
Air Blower	Yes
Height Above Ground	900mm

Detailed images:

	All SIEMENS Electrical parts are adopted ensures enduring and steady service life.
All SIEMENS Electrical parts are adopted ensures enduring and steady service life.

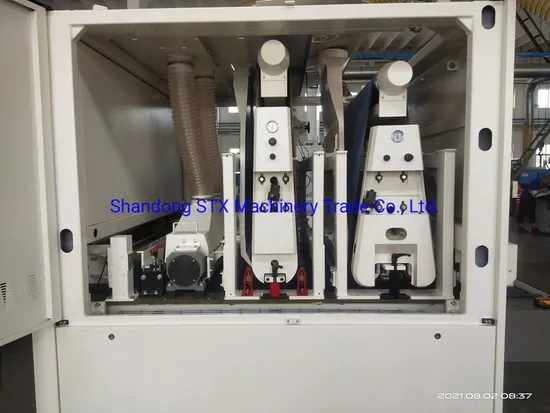

	Planer unit
AIRTAC pneumatic control system: maintenance free, good qualtiy and more stable.
	Omron limited switch, P+F photoelectric switch to control the abrasive belt.
Brush roller is equipped at rear side cleaning work pieces well.
	Touch Screen

Package & Delivery
After passed the quality inspection, the machine will be wiped with biodegradable anti-rust oil to protect from the humid sea air. Then use PE film packaging.
Usually we use iron pallet handling equipment to the container. It can also be packaged in a fumigant-free wooden box according to customer requirements.

Our Service
Pre-sale Service
· Tailored configuration solutions according to your needs.
· Customized service available.
· Free workshop layout design.
· Free visit reception service.
· Free supply chain support service.

After-sales Service
· Professional on-site installation, training and maintenance.
· Timely and efficient online and video technical support.
· Super 18 months warranty since package opened.
· Reliable lifetime spare parts support and technician service available.


About Us
Since established in 1990s years, we keep our attention on Four side moulder, Wood sanding machine, Optimizing cross cut saw and double end tenon machine. Depand on powerful R&D capability, strong machining capacity and high quality products and service, we have becoming a leader manufacturer in China

---
