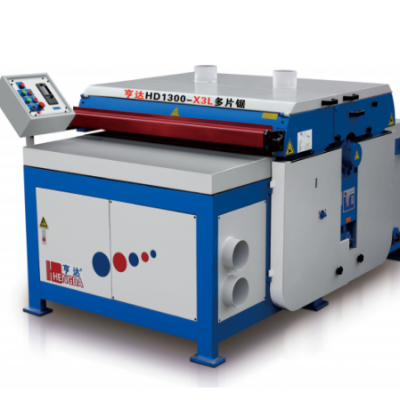

Product Name: CNC Automatic Board Cutting Machine Multi Blade Rip Saw
Model: HD1300-X3L
Application: Cutting of solid wood composite flooring, laminate flooring, panel furniture, sound-absorbing panels, wooden packaging boxes, laminated lumber, photo frames, bed frames, and other types of boards into multiple pieces of equal or varying specifications at one time; processing grooves on the surface of the boards.
Technical Parameters:
Cutting Width Capacity
| 1220mm, Max: 1260mm
|
Workpiece Thickness
| Max: 30mm; Min: 5mm;
|
Minimum processing length
| 550mm
|
Spindle diameter
| 74mm
|
Spindle speed
| 2600r/min
|
Saw blade size
| 205*74*2.2*60T
|
Spindle motor power
| 22kw
|
Feeding motor power
| 1.5KW
|
Total power
| 23.5KW
|
Feeding speed
| 0-17m/min (adjustable by frequency conversion)
|
Num. of feeding rollers
| 6/12 (first 3 groups and last 3 groups)
|
Precision
| Opening width tolerance ± 0.2mm;
Slat length 2.4 meters Straightness ± 0.5mm
|
Dia. of chip extraction duct
| 150mm*4pcs
|
Dimension
| 2200*1800*1450mm
|
Weight
| 2200kg
|
Features:
· The frame adopts standardized profiles, which undergo aging vibration and annealing post-welding, followed by integral processing. The frame's reference surface is precisely flattened, ensuring superior stability of the machine.
· The spindle bearing seat is crafted from high-grade ductile iron casting and annealed, guaranteeing stability and reliability during high-speed operation. The spindle undergoes hardening and tempering, coupled with dynamic balancing, resulting in minimal vibration and robust durability.
· The machine features a closed safety cover and an automatic power cutoff protection device upon opening, ensuring safety and reliability in operation.
· The material pressing mechanism of this machine utilizes manual synchronous lifting and lowering. The eight sets of pressing rollers adopt a stable spring clamping method, ensuring synchronized pressing and quick, convenient adjustments.
· Equipped with a variable frequency motor for feeding, saving power, flexible, and precise, resulting in smooth sawing edges and reduced wear on the saw blade.
· Enhanced safety. A dual anti-rebound protection system is implemented: a set of anti-rebound protection devices that adjust with the plate thickness, coupled with a fixed anti-rebound protection device.
· Equipped with three sets of wear-resistant nitinol rubber feeding rollers, totaling 12 rollers, at the front and rear. These rollers offer superior anti-slip properties, enhancing smooth feeding and ensuring consistent power output. A set of pressure wheels above the spindle prevents board jumping during sawing, maintaining sawing smoothness. The front and rear surfaces feature power rollers, facilitating board feeding.
· The variable frequency adjustable feeding mechanism enables the feeding speed according to the thickness and hardness of various sheets, promoting smoother and more stable material feeding.
>>
