PVC/Pet Shrink Label Sleeve Seaming Gluing Machine for Beverage/Battery/Pens Label

US$17,000.00-20,000.00 1 Set (MOQ)

Basic Info.

Model NO.

HZ350

Packaging

Bottles

Automatic Grade

Semi-Automatic

Packaging Material

Film

Application

Drinks, Oil, Dairy Products, Skin Care Products, Hair Care Products, Vegetable, Fruit

Usage

Outpacking

Type

Packaging Sealing Machine

Packaging Material Mechanical Properties

Flexible Container Sealing

Material Type

Bulk Solid

Sealing Speed

420m/Min

Servo Motor

4 Sets

Touch Screen

Taiwan Weinview

Transport Package

Wooden Case

Specification

3600*1750*1500

Trademark

RILI

Origin

China

HS Code

8477800000

Production Capacity

200sets/Year

Product Description

PVC/PET Shrink Label Sleeve Seaming Gluing Machine for Beverage/Battery/Pens Label
Performance and characteristics:
1)Stable and heavy-duty frame for high speed operation of 420m/min. 2) Adjustable forming plate creates efficient operation. 3) Auto solvent feeding control. 4) Auto tension control for unwind/rewind unit to maintain the optimun tension. 5) Good brand EPC device, precision 0.1mm. 6) Accurate product width. 7) Cantilevered rewind/unwind shaft for fast roll changeover. 8) PLC with color touch screen control system. 9) Copper tubing with felted wool for gluing, work with glue pump (dispenser) and PLC. The PLC can control the glue capacity with speed changes. 10) Rewind oscillation control to produce high quality rolls. 11) Static eliminator is adopted before rewinder. 12) Whole machine with 4 pcs of servo motors(for unwinding, drawing, rewinding and main motor), and 1pc magnetic powder brake for unwinder.
Main Technical Parameters:

Model	HZ-350
Max. Speed	420m/min
Max. Sealing Width	350mm
Min.Sealing Width	25mm
Max. Unwinding Diameter	500mm
Max. Rewinding Diameter	900mm
Dimension (L×W×H)	3600×2100×1900mm
Weight	1200kg
Unwinding Auto tension controller	√
Rewinding Auto tension controller	√
Automatic Gluing Adjustment	√
Auto Meter/ Stop	√
Stop by diameter	√
Unwinding Auto Edge Tracking	√
Dislocation Rectification	√

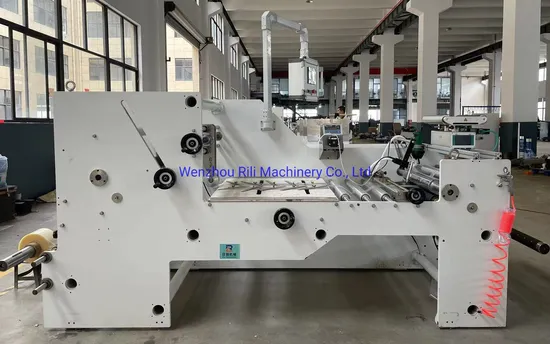

Machine Pictures:
