Factory Price Rotary Drilling Machine Drill Rig Rotary Head Yanmar 4tnv98t Engine Drilling Rig Machine Rotary

Product Description

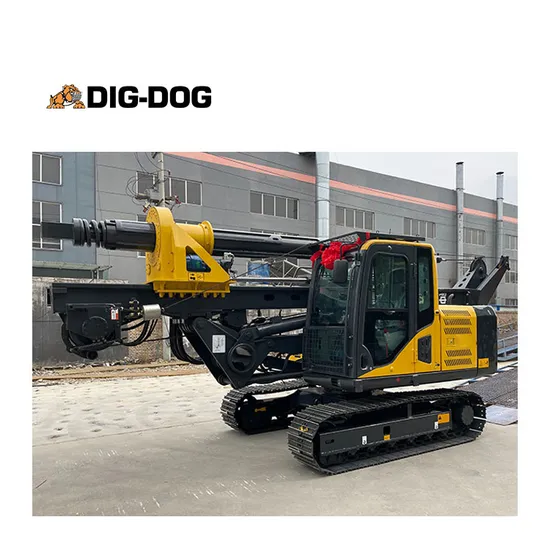

ROTARY DRILLING RIG
DIG-DOG overall transport full-liquid voltage Rotary Drilling Rigs.The leading overall transportation full -liquid voltage rotor digging machine to achieve rapid conversion of transportation status and construction status;Adopt a high -intensity broader rotor roding rig dedicated chassis, flexible control, comfortable driving, ultra -low fuel consumption,The transformer institution adopts a dual -oil cylinder, the mast stability is better, and the perforated straight linearity is higher. The main and auxiliary roll assembly is installed on the mast.It is especially suitable for small pores, high soil is high.

			DR45	DR60	DR135
Engine	Model		YANMAR 4TNV98T	Cummins QSF3.8	MITSUBISHl 4M50
	Service power	kW	56.5	86	118
	Rated power	rpm	2200	2000	2000
Power head	Maximum output torque	KN.m	45	65	150
	Drilling speed	rpm	0-60	0-40	0-30
Maximum drilling diameter		mm	1000	1000	1200
Maximum drilling depth		m	15	21	50
Drill pipe diameter		mm	273	299	377
Standard machine-lock type drill pipe			4×4.5m	4×6m	4×10m
Standard friction drill pipe			4×4.5m	4×6m	5×10m
Hydraulic system	Working pressure	Mpa	30	30	34
Working weight of the whole machine		kg	13000	21000	43000
Overall dimensions	Working state	mm	4560×2300×8590	5550×2500×11200	7300×3900×16300
	Transport state	mm	7200×2300×3000	9500×2500×3470	12250×2900×3400

Are you a manufacturer?
DIG-DOG is a family brand of BONOVO group, mainly focusing on small earth moving machines and amphibious excavators. We started our factory in 2006, but our industry experience dates back to the 1980s.
How to choose a drilling rig?
Safety, reliability and ease of use are also important elements to consider and are directly linked to each other. A machine that's reliable and easy to operate, when used according to the manufacturer's recommendations, increases user safety.
Which payment terms do you accept?
We can work on T/T bank transfer and 100% irrevocable L/C, we also accept trade assurance orders paid by ******, which is now safe and fast for both. Please contact our customer representatives directly for a specific term.
What logistics way for product delivery?
A: 1). 90% in shipment by sea, to all main continents such as South America, Middle East, Africa, Oceania and Europe, etc. 2). For neighborhood countries of China, including Russia, Mongolia, Uzbekistan etc., we can ship by road or railway. 3). For light parts in urgent need, we can deliver in international courier service, including DHL, TNT, UPS or FedEx.
What are your warranty terms?
We provide a 12-month or 2000 working hours structural warranty on all our products, except failure caused by improper installation, operation or maintenance, accident, damage, misuse or non Bonovo modification and normal wear.
What is your lead time?
We aim to provide customers with a fast lead time. We understand emergencies happen and priority production should be preferred in a faster turnaround. A stock order lead time is 3-5 working days, while custom orders within 1-3 weeks. Contact our sales so you can have an accurate lead time based on actual situations.

---
