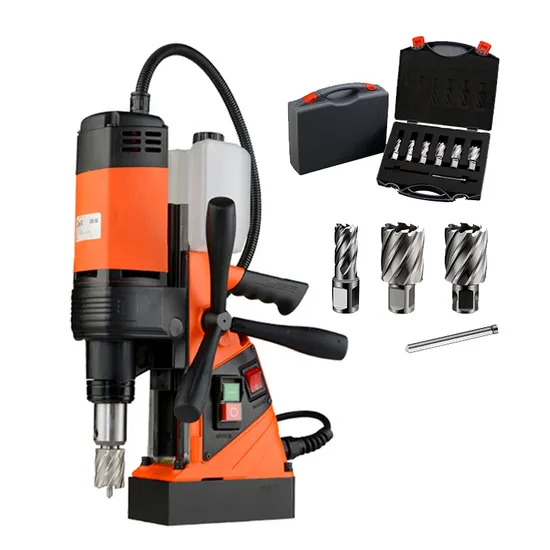

Chtools Dx-35 Annular Cutter Magnetic Drill Machine

US$290.00-300.00 1 Piece (MOQ)

Basic Info.

Model NO.
DX-35
Structure
Deep Hole Drilling
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
Other
Hole Diameter
35mm
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001, ISO4001
Condition
New
Magnetic Adhesion
10000n
The Type of Shank
19.05mm
The Max Cutting Depth
50mm
The Max Cutter Capacity
35mm
Countersunk Drilling
10-35mm
Load Speed
450rpm
Stroke
120mm
Transport Package
Plastic Box
Specification
55*22*45cm
Trademark
CHTOOLS
Origin
China(Mainland)Zhejiang
HS Code
8459290000
Production Capacity
10000sets/Month

Product Description


Application:
Magnetic drill machine is applicable to steel structure drilling, shipping building, paper making, bridge construction, mechanical equipment installation, steel construct engineering, subway construction, large equipment maintenance and all the pipeline engineering.
Product Type DX-35 DX-60
Stroke 120mm 170mm
Magnetic base bize 167*84*44mm 210*100*45mm
Input power 1100W 1500W
The max cutting depth 50mm (2") 75mm
The max cutter capacity diameter 35mm (1-3/8") 60mm
Motor can adjust the height to 95mm 130mm
The max diameter of twist drill 13mm 31.5mm
The min cutter depth 10mm 10mm
Magnetic adhesion 10000N 15000N
The type of shank 19.05mm (3/4") MT3
Total weight 15.4kg 25.4kg
Load speed 450rpm 250/450rpm
Countersunk drilling 10-35mm 10-50mm
