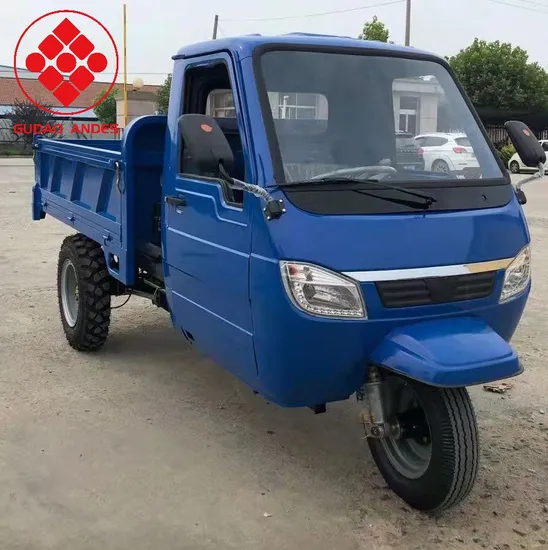

3 Wheel Motorcycle with Cabin and Garbage Bucket Diesel Engine Tricycle

Product Description

3 Wheel Motorcycle with Cabin and Garbage Bucket Diesel Engine Tricycle for Farm
Our tricycles o 4 wheel dumpers has been approvded by clients from Peru, Bolivia,Ecudoar, Malaysia Mongolia and etc over 40 countries!
We are factory of origianl mining truck factory,such as tricycle,four wheel truck, dump truck for small o midium scale mining!Diesel or electrical three o 4 wheel mining cargo dumper is our main product, mainly used in mining, brickyard, sanitation, palmryand pasture. It has been improved many times with the advantage of large power,long work hours, heavy load and suitable for any road.
We have the types of cargo tricycles dumpr truck and 4-wheel dumper trucks from 1ton to 30 tons for you to choose. We could help you choose the suitable model for you! Advantages of tricycle mining truck and 4 wheel dump truck:1. Improved design of main structure like two and half beam to assure large load and security;
2. Improved design of power supply and distribution system to achieve lower fuel consumption and more driving force;
3. Best diesel engine and battery group supplier to assure a robost performance;
4. Clutch lock is used for Rear axle and no resistance gear makes it easy to operate.
5. Large capacity is put to use for fuel tank, driving mileage is long.
6. Electrophoretic coating process is used for the vehicle cover panel. Corrosion and aging resistance, non-fading.
Brief technical parameter sheet of electrical tricycles.

	PARAMETRO TECNICA DE VOLQUETE ELECTRICO DE 3 Y 4 RUEDAS
	ITEM	MODELO	GD-D06	GD-D10	GD-D15	GD-D20	GD-D30	GD-40(4 Ruedas)	GDC-05(4 Ruedas)
	1	VOLUMEN DE CAJON	0.5m³	0.5m³	0.65m³	1.1m³	1.2m³	1.6m³	2.3m³
	2	CAPACIDAD	600kg	1000kg	1500kg	2000kg	3000kg	4000kg	5000kg
	3	ALTURA DE DESCARGA	1700mm	2100mm	2100mm	2250mm	2350mm	2650mm	2550mm
	4	ALTURA DE CARGA	1100mm	1200mm	1200mm	1250mm	1250mm	1300mm	1350mm
	5	DISTANCIA AL SUELO	≥180mm	≥240mm				EJE FORNTAL:190mm EJE TRASERO:300mm
	6	SOBRE SALIDA FRONTAL/TRASERO	900mm	1150mm	1150mm	1350mm	1380mm	1520mm	1520mm
	7	CAPACIDAD MAXIMA DE GRADO(CARGADO)	≤6°					≤8°	≤8°
	8	GRADO DE INCLINACION DE LA TOLVA	45±2°	45±2°	45±2°	45±2°	45±2°	40±2°	40±2°
	9	MODELO DE LLANTA	FRONTAL:450-12 TRASERO 500-14	FRONTAL:450-14 TRASERO 600-14	FRONTAL:450-14 TRASERO 600-14	FRONTAL:500-14 TRASERO 650-16	FRONTAL:600-14 TRASERO 700-16	FRONTAL:650-16 TRASERO:750-16	FRONTAL:650-16 TRASERO 750-16

Packing and delivery our workshop:
Qingdao Gudao Andes Machinery Co.,ltd. a factory of underground mining transportation tricycles and trucks with 25 years experience.
Our tricycles and trucks are one of the best qualities in China and exported to more than 40 countries all over the world, like Malaysia, Ecuador, Peru,Chile, Bolivia and Ghana, South Africa. Quality first is always our first principle.
With our products, we will help you create more value in your future business with our best quality and service.
Case of client:
Inquiry service:
In order to provide you the most suitable product, please help us to answer the bellow several questoins:
1. Where do you need to use the dump truck:
For underground tunnel mine and if so, the width is? Or for palmery so the dumper need to be equipped with wider tyre.
2.What is the load capacity you need?
From 1 - 30 Tones.
3. What is the engine type you prefer?
For tricycles of 1-5 tones, we have diesel motor and electrico type. For 4-wheel dumpers, we only have diesel motor type.
4. Any other special requirements, please tell us in advance.
Warmly welcome to visit our factory and we could do a video call to introduce us first.

---
