High Definition-Power Line Communication KS802N

Product Details

Product Description

Product Description

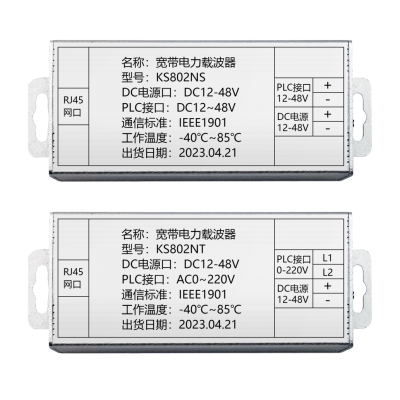

High Definition-Power Line Communication KS802N
Gigabit type
Products Features:
●Gigabit bandwidth，highly versatile，ultra-small volume，industrial grade standards.
●The carrier rate physical layer bandwidth up to 1000Mbps，hundred megabytes of data layer bandwidth.
●Built-in LDPC error correction codec，AES-128bit data encryption，fully transparent data transmission，
supports hot-swapping，plug-and-play.
●The carrier supports bus, star, tree, and hybrid network topologies structure.
●It is no need to configure host and slaves by default，autonomous negotiation of host-slave relationship
after power-up.
●Is an industrial-grade, highbandwidth, longdistance transmission power carrier communication device with
excellent performancebased on IEEE P1901, using OFDM modulation and demodulation technology,
industrial grad bandwidth power line carrier communication equipment compliant with the European
Union's EN-50561 standard specification.
Technical data:

Classification	Technical indicators
Power supply	DC 12-48V
PLC Signal port	NS type：DC12-48V	NT type：AC0-220V or DC0-400V
	Any two-core cable, power cable, parallel cable, twisted pair cable, coaxial cable, etc.
Modulation type	OFDM modulation type
Carrier frequency	1.8～86 MHz
Ethernet bandwidth	10M/100Mbps self-adaption
Transmission distance	Ordinary power lines is 300 meter
Data delay	Within 10ms
Packet loss probability	Less than 0.1%
Overall power consumption	≤3W
Standard agreement	TCP/IP，UDP，Profinet，Home Plug，Home PlugAV，IEEE 802.3，IEEE 802.3U，IEEE 802.3ab，IEEE 1905.1，IEEE 1900，IEEE 1901etc
Way of encryption	AES-128bit
Multicast	Support IGMP multicast protocols,the maximum number of nodes is 128
Exterior dimensions	Size：924025mm （LWH） Weight：200g Install：Earhook
Environmental requirement	Operating temperature：-40℃～85℃ Operating humidity：20%-95%（No condensation） Storage temperature：-40℃～85℃
Working time	Industrial grade, supports 7*24 hours all-weather work

.
Exterior dimensions:

PLC KS802N’s length, width and height are：92x40x25mm(with fixed ear)，fixed hole spacing is 83mm，
fix with M4 screw.
Applications:
It has been widely used in various industries，including inspection robots, pipeline robots, underwater robots,
intelligent charging piles, intelligent street lighting, intelligent traffic monitoring and other fields.
