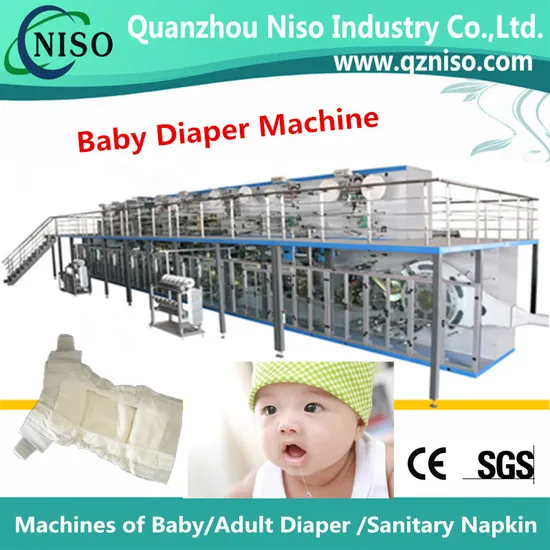

High Speed Elastic T Shape Diaper Production Line Manufacture (YNK500-SV)

Product Description

High Speed Elastic T Shape Diaper Production Line Manufacture (YNK500-SV)
Quick Details of Diaper Production Line

Condition	Used
Product Type	Baby Diaper Machine
Processing Type	High Speed Elastic T Shape Diaper Production Line Manufacture (YNK500-SV)
Place of Origin	Fujian, China (Mainland)
Model Number	YNK500-SV
Certification	CE,ISO certificates
Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas
Stable:	yes
Size of diaper:	S, M, L, XL
Finished product:	baby diaper
Control system	full-automatic for baby diaper production line
Waste rate	less than 2%
Operators	6-8 operators including packing baby diaper

Product Description of Diaper Production Line
Main Technical Parameter

Designed production speed	600 pieces/min for baby Nappy
Stable production speed	500 pieces/min(or as per customers designed)
Machine power	three-phase five-wire(380V, 50HZ)
Machine capacity	about 300-350KW(exclude hot melt applicators and air compressor)
Machine size	30.0m*7.0m*3.5m(L*W*H)( (Can be customized)
Machine weight	about 50 Ttons(whole production line)
Air pressure	0.6-0.8Mpa

Main Function Features
1. Produce regular baby diaper,economic baby diaper and high grade baby diaper.
2.Produce 4 sizes of I shape and T shape baby diaper.
3. Materials of stereo-protection complex and molded on full-servo automatic baby nappy manufacturing machine.
4. Waistband,frontal tape and side tape are cut automatically
5. Extension of rubber band can be regulated
6. The quantity of SAP and fluff pulp can be adjusted freely
7. Raw materials automatic unwinding system,automatic tension control system,automatic splicing units,automatic rejection units,automatic web guard system.
8.Frontal tape and side tape out-set from the main machine to make it convenient to change raw material
9. Machine attached with fully automatic packing machine(stacker),make packing simpler and save labor force
10. Full-servo automatic baby nappy manufacturing machine equipped with production door
11.Touchable Screen:Machine switch on/off,running speed,time,counting pieces,parameter setting,alarm,error display,error enquiry(functions setting appear on screen are different according to different machine type)
Optional device:
1:Perfume spraying unit
2:Wetness display function

Packaging & Delivery
Packaging Details: wooden cases and plastic film for full automatic baby nappy machine
Delivery Details: within 120days Baby diaper machine supplier

Model

Model	Driven mode	Speed(PCS/MIN)	Weight(T)	Capacity	Machine size(L*W*H)
YNK500SV	full servo driving	500-600	60	330kw	31*8*5.5m
YNK450HSV	semi-servo driving	400-450	60	240kw	27*8*5.5m
YNK400FC	inverter driving	400-450	60	190kw	27*8*5.5m

Why Choose us?
Profession design
Our factory has in machinery industrials for 15 years,improve andinnovate technology from Japan Italy all the time.
Quality
All the spare parts used according to the contract, original German & Japan & Italy & USA brand.
Processing
CNC processing, special surface processing, anti-glue processing.
Commitment
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
Excellent After-sale Service
1. You can send technician to learn machine operation before the machine delivery for 1-2 month. We can offer food and accommodation.
2. When machine arrive your workshop, we will send technician to your workshop installing, testing the machine and training your workers.
3. If you need one Chinese technician work for you, we can help you find one work for you.
4. Life-long after service for the baby diaper machine

Other raw materials of sanitary pads& diapers available:
1.PE film and cloth-like film materials
2.PP/MAGIC Side/Frontal Tape
3. Hot-melted glue(Spandex/Structure)
4.FLUFF PULP(treated/untreated,SAP)
5.Jumbo tissue paper(Upper/Lower Tissue Papdsxer)
6.Non-Woven (Topsheet-Hydrophilic N.W./ leakage-Hydrophobic N.W.)
7.Spandex
8.Release tape for sanitary napkin
9.Released paper (winged/back of sanitary pad)
10.Sap absorbent paper
11.Outside PE bags/Polybags
12.Elastic waistband
13.ADL

Contact Details
Name: Ivy


Web: qzniso.en.made-in-china.com

---
