Dry Lamination Machine Roll to Roll Paper Laminating Machine Price for Film Plastic

US$45,000.00

1-9 Pieces

US$28,000.00

10+ Pieces

Basic Info.

Model NO.

KTLM-SB180

Application

Particle Board, Fiberboard, Plywood, Aluminium Plate, Packaging Paper, Film Material, Color Printing, Soft Board

Driven Type

Electric

Automatic Grade

Automatic

Membrane Material

Paper

Plastic Film Mulching Modes

Dry Laminating Machine

Product Name

Dry Lamination Machine

Keyword

Lamination Machine

Keyword 1

Laminating Machine

Keyword 2

Paper Laminating Machine

Keyword 3

Laminating Machine Price

Keyword 4

Roll to Roll Paper Laminating Machine

Keyword 5

Film Laminating Machine Roll to Roll

Keyword 6

Kraft Paper Laminating Machine

Dry Lamination

Yes

2 Layer Laminating

Yes

Sovlent Base Glue

Yes

Plastic Film Laminating

Yes

Aluminum Foil Laminating

Yes

Paper Laminating

Yes

Laminating Speed

150m/Min

Transport Package

Wood Box

Specification

12600x3600x3300mm

Trademark

KETE

Origin

Wenzhou, Zhejiang Province, China

Production Capacity

10 Sets/ Month

Packaging & Delivery

Package Size

1260.00cm * 360.00cm * 330.00cm

Package Gross Weight

10000.000kg

Product Description

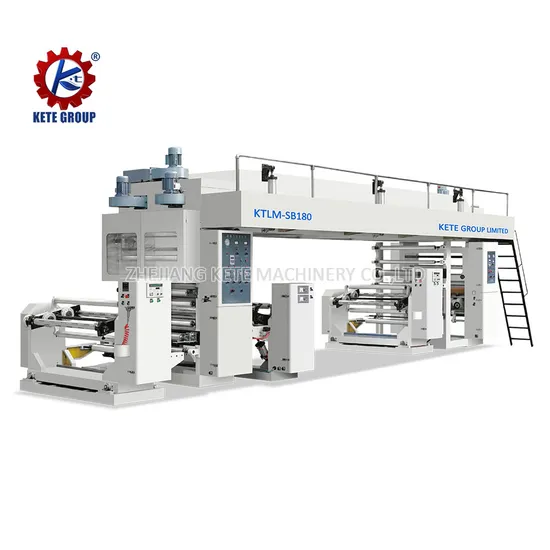

This High Speed Dry Laminating Machine Is Suitable For Laminating Different Kinds Of Materials In The Packing Industry Such As Plastic-
Plastic, Paper-Plastic, And Aluminum-Plastic Lamination.
Ω.With the PLC Touch Screen System Ω.Photoelectric Error Correction for Rewind Ω.Double Frequency Conversing Synchronic Ω.Reeling and Unreeling by Tumbling Dual-station Mechanism
Ω.Two Means of Glue Applying Ω.Oil Warming System for Composite Reel
Ω.Top Air Style Oven Open, Initiative Guiding Roll in Oven Ω.Optional: 4 Motor or 8 Motor Tension Control System
Ω.4-sect Heating in Drying Oven Separate Control

Model	KTLM-SB180
Raw Material Width	1050/1250/1350mm (41.3"/49.2"/53.2")
Raw Material	Plastic film, Paper, Aluminum Foil
Laminating Stratification	2Layers
Glue	Solvent Based
Max. Mechanical Speed	180 m/min
Max. Laminating Speed	150m/min
Unwind and Rewind Diameter	Φ600/Φ800mm (23.6"/31.2")
Paper Core Inner Diameter	Φ76mm (3")
Oven Temperature	80ºC
Total Power	95kw
Machine Weight	10000kg
Machine Size (LWH)	12600×3600×3300mm
Power Support	5Lines 3 Phase 220/380/440V 50/60HZ
