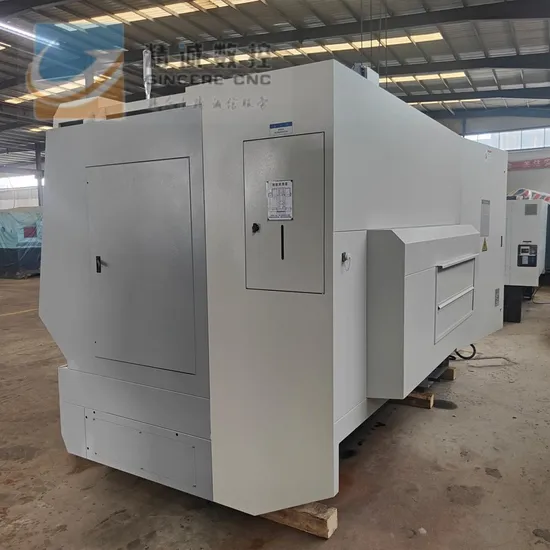

Large Extended CNC Lathe Cak61110 Processing Length Can Be Customized

Product Description

Model: CAK61110
System available: FANUC, SIEMENS, GSK, KND,MLT, HCN etc.
Double spindle
2-axis function
Max machining diameter: 1110mm
Mechanical spindle
Features
*Each axis equipped with imported high-precision linear guide,ball screws and precise bearings. * Using synchronous guide bush structure,realize high-speed and high-precision machining. * With guide bush or without guide bush switching flexiblely to meet different needs of processing. * Key components with gas sealing structure, oil and slag prevention, improving service life and stability. * Select high torque motor, high rigidity and high strength slipway for each axis and tool holder to meet the requirements of large cutting volume and high efficiency. * High scalability, tool quantities matched with different requirements of processing, reaching great cost-effective.
* Available with ER20 tools to increase the machining range.

Name	Unit	CK61110 High fiset
Max swing diameter over bed		1100mm
Max swing diameter over carriage		780mm
Max workpiece length		1000.3000-6000mm
Spindle bore and nose		105.A2-11(Thickened spindle and larger bearings)
CNC control system		GSK 980series(reference)
X/Z servo motor		GSK 15N*M
Drive		GSK
Number of spindle speed stagcs		New manual four - speed with stepless gear
Spindle speed range	r/min	1gera:20-80;2gear:50-200;3gear:100-330;4gear:220-790
Frequency converters		Hpmont(18.5KW:HD3M - 4T018G)
Electric knife holder		Yaxing.Hongda
X - direction lead screw	32mm	HJG
Z - direction lead screw(1-1.5m lathe)	63mm	HJG 63mm
X - direction lead screw	32mm	HJG
Z - direction lead screw(2-5m lathe)	63mm	HJG
Z - way precision rack(Lathes over 6 meters)	M3	SDIEBORG
Tailstock (tail core diameter)		140mm
Main motor power		15KW
Width and hardness of the bed guidways		700 RC50° above
Cooling pump motor power		150W
Maximum load-bearing		3T
Chuck		800mm four - jaw(Optional)
Workpiece length/weight (Reference)	1000mm	5300kg
	1500mm	6000kg
	2000mm	6800kg
	3000mm	7900kg
	4000mm	8500kg
	5000mm	10400kg

Shandong Weifang SINCERE CNC Machine Tool Co., Ltd. is located in the famous kite city of the world - Weifang City, founded in the spring of 2003. Its products are of excellent quality, leading technology, reasonable price and considerate service; The company for production, sales, service has many years of practical experience, is a professional machine tool numerical control industry pilot enterprise in Shandong province. Since its establishment, relying on the "quality assurance, integrity-based, continuous innovation, the pursuit of excellence" business philosophy and perfect service system, the company has rapidly developed into a well-known set of production, sales, service as one of the professional CNC equipment production enterprises; And take social responsibility as its own responsibility, the "integrity, good, innovation" as the constant pursuit and goal, sincere people are willing to work with the majority of friends to create a better tomorrow!
Our Advantages
1.High quality/Reliable/Robust machines2.Service and support are top priorities3.Quickly response 7/244.Customized Machine According to Customer's Requirements5.Integrated solution provider6.More details please contact us, or send your drawings for professional recommendations
After Sales Service
Service
Service and support are a top priority. Our engineers and after sales team are trained to provide uncompromising customer service and support.
Training policy
Pre-training is available at our factory freely for our clients, video or remote training can also be provided. We charge for local training on the basis of travel expense + man day.
Warranty policy
Warranty period: 12-month. It is free of charge if it is damaged under normal use during warranty period. If the equipment is damaged due to improper operation, we charge material fees within one year. After one year, it will charge material fees and Labor costs.
Installation and commissioning
The installation and commissioning process of CNC lathe includes the following steps:
Machine tool in place: place the machine tool in the predetermined position, make sure the foundation is level and the machine tool is horizontal.
Appearance inspection before energizing: Check whether the machine tool electrical appliances, such as relays, contactors, fuses, servo motor speed, etc., are loose, and the connectors with locking mechanism should be locked. Also check the appearance and structure of the machine tool to make sure there are no damaged or missing parts.
Power on test run: according to the requirements of the manual, carry out power on test run. Observe the CRT display until a normal screen appears.
Functional debugging: Verify the normal operation of each functional part of the machine tool, such as spindle, feed axis, tool magazine, lubrication system, etc.
Precision debugging: carry out precision debugging of the machine tool, including geometric accuracy, positioning accuracy and repeat positioning accuracy.
Parameter setting: according to the requirements of workpiece machining, set the machine parameters, such as tool compensation, coordinate system setting, etc.
Empty running test: Under the automatic running mode, carry out empty running test for the machine tool to check the operation of each component.
Load test: Under automatic operation mode, carry out load test to check the running performance of the machine tool under load condition.
Acceptance and delivery: After the machine is commissioned and qualified, acceptance and delivery will be carried out, and the necessary operation and maintenance training will be provided.
During the whole installation and commissioning process, pay attention to safety, comply with the operating procedures to ensure the safety of the machine tool and personal safety. At the same time, operate in strict accordance with the instructions and technical requirements provided by the machine tool manufacturer to ensure the normal operation and service life of the machine tool. Other
1.What's the main products of your company?
A: We manufacture economical CNC lathes, which are mainly used to produce small, medium and large metal parts.
2.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
3.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
4.What is your leading time?
A:Typically it takes about 15-90 days depending on quantity and model.
5.What's the Payment Terms?
A: Our practice is T/T ,30% deposite ,70% balance before shipment.
6.What's the shipment Terms?
A: By sea, by train, by truck, by air(metal parts samples).
7.What's the offering Terms?
A:FOB/QingDao.
8.Where is your factory located? How can I visit there?
A :Our company is located in the north of Lijia Village, Fushan Town, Weicheng District, Weifang City, beautiful Shandong Province, we warmly welcome your visit!

---
