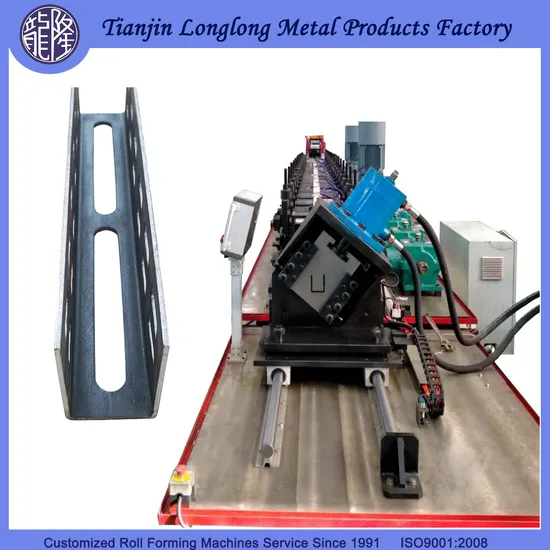

Building Material Making Machine Modual Strut Roll Forming Machine with Long Life Service

Product Description

Description of High quality 1.0mm ~ 4.0mm C Steel Channel Roll Forming Machine for Construction Materails

MACHINE LIST--WHOLE LINE
No.	Item	Unit		Qty
1	Decoiler(Configurable)	Set		1
2	Main Forming Machine	Set		1
3	PLC	Set		1
4	Pneumatic Cutting	Set		1
5	Cutting System	Set		1
6	Collector(Configurable)	Set		1
Sample photo
Technical Parameter
No.	Item	Square tube roll forming machine,Square pass roll forming machine,Construction steel profile,C profile roll forming machine
1	Material	Aluminum alloy(Can be customized)
2	Thickness	0.45-0.55mm(Can be customized)
3	Forming steps	15steps (Can be customized)
4	Forming speed	≈20M/Min(Can be customized)
5	Roller material	Gcr 12(Can be customized)
6	Shaft diameter	55mm(Can be customized)
7	Dimensions(M)	12*1.8*1.2
DETAILED DESCRIPTION
Name	No.	Item		Parameters
Decoiler(MT200,MT300,MT500,Customized)	1.	ID of raw mateiral		320mm-550mm
	2.	OD of raw mateiral		1250mm
	3.	Carrying capacity		1T/2T/3T(Customized)
Sample photo
Name	No.	Item		Parameters
Main Machine	1.	Machine body frame		350H steel welded
	2.	Forming step		15Steps
	3.	Roller material		GCr12, Customized
	4.	Shaft		45#, quenching and tempering 220~250HBS; Customized
		Shaft Dia		55mm
	5.	Transmission		Gear(customized)
	6.	Main motor		≈11kw
	7.	Post column(steel plate)		20mm
Name	No.	Parameters
Electric control parts	PLC	Customized
Sample photo
Name	No.	Item		Parameters
Pneumatic cutting parts	1.	Set		1
	2.	Power		1.5KW
Sample photo
Name	No.	Item		Parameters
Cutting parts	1.	Cutting mode		Pneumatic cutting
	2.	Blade		GCr12 with heat treatment HRC58-62ºC
	3.	Cutting length tolerance		±1mm
Name	No.	Item		Parameters
Quotation and Services
Name	Square Pipe Roll Forming Machine
Quantity	1Set
Price	25000-72000$
Notes	1.	Production capacity: 50sets/month
	2.	Lead time: Within 45 days after receiving down payment
	3.	One year warranty and we will provide the technical support for the whole life.

Advantage
1.We are manufacturer and have export entitlement.
2.We have more than 30 years' experience, our products have been exported to more than 80 countries all over the world.
3.We supply manufacturing, design, installation, after-sales and other services.
FAQs
1.Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.
We need your machines running in order to keep your business running.
2.How to visit your company?
a. Fly to Beijing airport, we can pick up you.
b. Fly to Tianjin Airport, we can pick up you.
3.How to get a quotation?
a. Give me the profile drawing and thickness, this is the important. If no, I will suggest you some.
b. Other specific requirements are welcome, such as the speed, power and voltage you want.
4.You are trade company or factory?
We are factory. Welcome to our workshop for visiting.
5.Can you be responsible for transport?
Yes, please tell me the destination port or address. We have rich experience in transport.
6.How long the machine could be made?
Normally speaking, common roll forming machine could be made within 45 working days.
If you need machines in a hurry, we can make it for you less than a month

---
