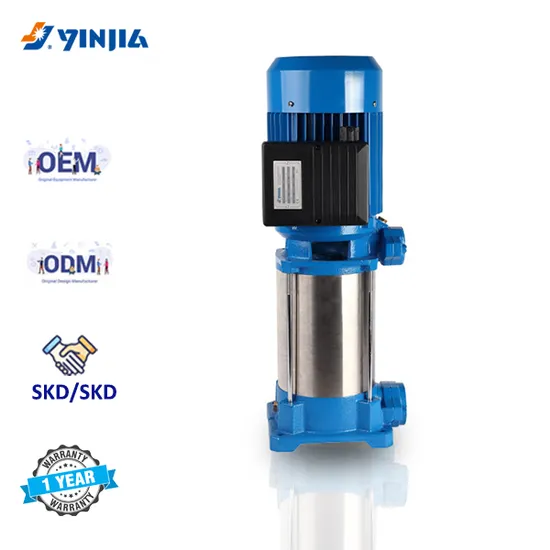

Factory Price High Quality Multistage Pump for Machine Multistage Centrifugal Water Pumps

Product Description

APPLICATION -Centrifugal vertical and horizontal multistage water pumps able to develop high pressure and a high water lift with a comparatively low power consumption. -Universal pump for civil and industrial purpose, for high pressure system and for irrigation in agriculture and sports fittings.
OPERATING LIMITS -Total suction lift up to 6-8mt. with foot valve -Max. operating pressure: 8 bar. -Max. ambient temperature: +40ºC -Max. liquid temperature: +90ºC -Max. altitude: +1000 mt.	MOTOR -Insulation class:B -Protection: IP44 -Speed or rotation: 2850rpm -Continuous duty: S1
DESIGN FEATURES -Pump body/motor bracket: cast iron -Pump casing: Stainless Steel AISI 304 -Diffuser: PPO -Impeller: PPO -Bearing: C&U -100% copper winding -Built-in thermal protector for single phase motor -Motor shaft: AISI 304 welded shaft -Mechanical seal: Carbon/Ceramic/NBR/SUS304	SPECIAL FEATURES ON REQUEST -Anti-rust treatment for casting -AISI 1045 motor shaft -Carbon/Sic/V mechanical seal -Other voltage and frequnecy -Insulation class:

FAQ Q: Are you a factory or trading company?A: We are a professional surface water pump manufacturer since 1990, located in Fuan, Fujian, China.
Q: Do you provide OEM/ODM service?A: Yes, we are premium OEM/ODM manufacturer which assessed by independent third parties.
Q: What is the feature of your products ?A: Our products have 3 obviously features: quite, powerful, heavy duty.
Q: What is your MOQ ?A: 100 pcs per model for factory brand and package. 300 pcs per model for OEM brand and package.
Q: How do you control the quality ?A: All production process strict to follow ISO9001 system, QC team check the quality during the production and do the test before each shipment.
Q: What is your delivery time?A: 15 days for sample order, 30 days for container order. ( Busy season may need more days )

---
