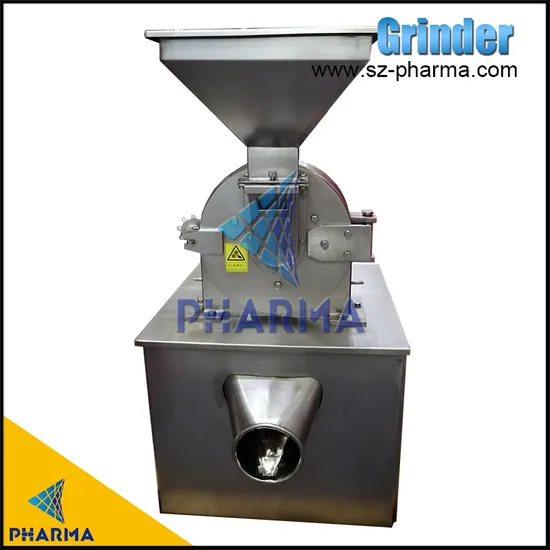

Herb Grinder Stainless Steel Water Cooled Pharmaceutical Raw Material Crusher

Product Description

This machine is suitable for the fields of medicine, food, chemical industry, metallurgy, geology, agriculture, scientific research, etc. For the crushing and processing of various kinds of Chinese herbal medicines, precious medicinal materials, ores, and chemical raw materials.
The product is made of stainless steel and contact materials using 304 stainless steel, horizontal and vertical cutting, the cutting speed is fast, and the fineness can reach 10-120 mesh.
Working principle: The main shaft of the machine is driven by a motor to rotate at a high speed. The movable disk and the fixed disk collide and rub against each other, and are crushed by the impact between each other. The crushed material is subjected to the action of rotating centrifugal force, and then enters the collection bag after being screened through the sieve.

Characteristics
1.The whole machine is made of stainless steel, which can meet multiple industry standards. The crushing chamber is equipped with a water-cooled jacket to meet the crushing requirements of most heat-sensitive materials.

2.Low noise, separate collection room and dust collection room, so that the dust can be fully collected, can meet the user's requirements for cleanliness; the whole motor balance is good, and the noise is greatly reduced.

3.There are blades in the crushing knife set, which increases the air flow in the crushing chamber, which can ensure the output and reduce the temperature generated during crushing. It is suitable for crushing some materials with poor fluidity and viscosity.

4.Equipped with screens of various specifications to meet various fineness requirements.

5.There are two types of dust removal and no dust removal, which can meet the needs of different customers.

Pressing output	15-75kg/h; 50-250kg/h; 200-550kg/h
Crushing size	10-120mesh
Spindle speed	3800-4500 r/min
Motor power	3-7.5kw
Voltage	380V/50HZ
Weight	110-280kg
Material	Food, pharmaceutical miscellaneous grains, chemicals and corrosive materials
Power type	Electric
Dimension	Customize, 556*450*900mm ;765*575*1180mm; 1167*630*1150mm
Other machine option	Tablet press machine, mixer, coating machine

---
