Pet Preform Injection Molding Machine (PET-800V6)

Product Description

Product Description

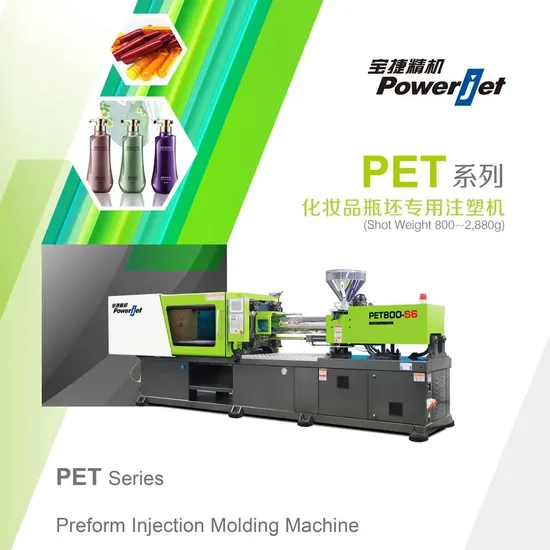

PET PREFORM INJECTION MOLDING MACHINE
Powerjet PET Preform Injection Molding Machines are specialized for different sizes of PET preforms. With PET special screw, it highly increases the plasticizing speed and shot weight.

Shoot Weight - 4975g(Max)
Clamping Force - 128~680(Ton)
Motor Type - Servo Or Variable
Applications - Specialized For Different Sizes Of PET Preform

FEATURES:
1:PET Special Screw
PET screw highly increases the plasticizing speed and shot weight, lowers the plasticizing temperature and AA value, also achieves better product transparency.
2:Energy-Saving 30%~50%
The servo motor control system can save energy by 30%~50%, while the variable pump control system can save energy by 25% ~ 45%.
3:Pressure Synchronization System
Optional with pressure holding and charge at the same time, which can increase productivity by 15%~25%.
4:Max Shot Weight
Different models are available for the choice of customers, Max shot weight: 5000g
Machine Details
Product Parameters

	DESCRIPTION	UNIT	PET8000-V6/S6
CLAMPING UNIT	Clamping force	KN	5000
	Opening stroke	mm	830
	Max.datlight	mm	1680
	Platen size	mm	1150*1120
	Space between bars	mm	820*780
	Max.mold height	mm	850
	Min.mold height	mm	300
	Ejector stroke	mm	220
	Ejector force	KN	289
INJECTION UNIT	Screw diameter	mm	125
	Shot volume	cm3	6872
	Screw stroke	mm	560
POWER UNIT	Hydraulic system Pressure	MPa	17.5
	Pump motor power	KW	51+51
	Heater power	KW	90
