Customized C U Purlin Steel Roll Forming Machinery

Product Description

Product Description

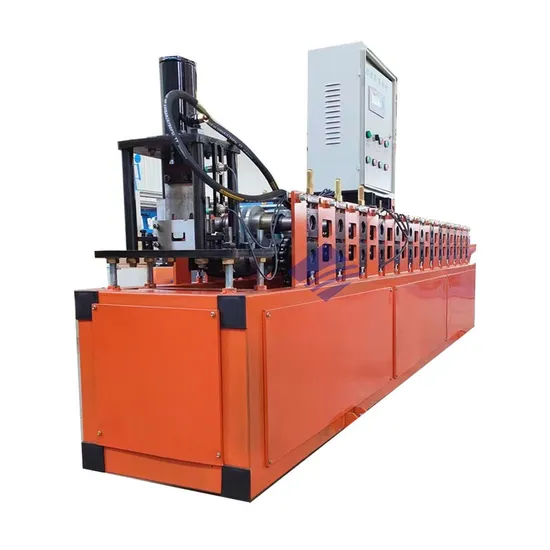

This Changeable U Purlin Light Steel Keel Roll Forming Machine
- C & U Profiles Roll Forming Machine Roll forming machine for the manufacture of C and stiffened U type metal profiles
Choose profiles:
- Specifications: We customize the machine according to customer's requirements and can be used for a wide variety of profiles.

Items	STANDARD model
Total power	11 - 18kw
Speed	16 - 18m/min
Dimension (LxWxH)	(8-11)x(1.2-1.6)x1.6m
Weight of machine	6 - 9 tons
Roller station	14 - 20
Material thickness	1.0 - 3.0mm (G300-G550)
Material width	150 - 450mm
Transmission system	Hydraulic motor
Cutting system	Hydraulic cylinder (rear & front cutting)
Punching system	Hydraulic
Changing size	Manual with spacers
Control system	Automatic with PLC, HMI

Wadjay offers a wide range of products and good solutions for companies operating in sheet metal, construction, manufacturing industries. Our products include:
Roofing roll forming machine / Caping roll forming machine / Louver roll forming machine / Pressing curve forming machine / Floordeck roll forming machine / Truss roll forming machine / Channel roll forming machine / Ceiling roll forming machine / Slitter & cutter / Leveling & cutting to length machine / Bending machine / Decoiler (uncoiler)
- Details of U Purlin Light Steel Keel Roll Forming Machine
Feding table:
Can be used with uncoiler, easy feeding, cutting, safe and efficient
Control system:
Programmable setting of profile length and quantity, Computed mode has two modes: automatic and manual one. Language:English, Chinese,Spanish and Russian. The system is easy to operate and use.
Forming system:
Material of the roller : High grade No.45 forged steel. Roller station : 12-14 rows. Thickness of feeding material : 0.3-0.8mm
Cutting system:
Stepless cutting system after forming, no need to change the cutting tool, manual change, Cutting material: Cr12

Packaging & Shipping

Company Profile
FAQ
Q1: How long is the warranty?
A1: We guarantee a 12-month after-sale service .Any problem when using ,call or mail us ,we will advise on technically sound methods .If needed ,we will provide free accessories Q2: Can I have my own customized product?
A2: Yes, your are welcome customized requirements for color, logo, design, package, carton mark, etc.
Q3: How can I get sample and how long will it take?
A3: Sample policy is different for different items. Please kindly contact us to get details.

Q4: What's the MOQ?
A4: MOQ is different for different items, please kindly contact us for confirming.

Q5: How do I pay for my purchase order?
A5: T/T, L/C at sight, Western Union, MoneyGram

Q6: What is your terms of payment?
A6: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance

Q7: How about your delivery time?
A7: Generally, It will take about 7~15 days to send goods out. The specific delivery time depends on the items and the quantity of your order

---
