CNC Lathe Turning Milling Machine Tck600/Tck700 with Siemens 828d Control

Product Description

Product Description

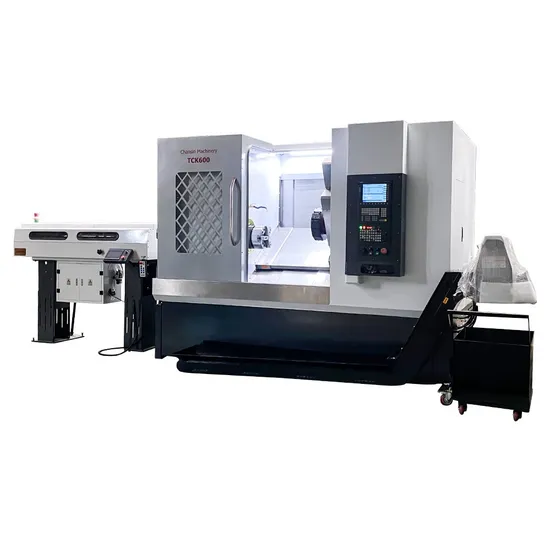

CNC Lathe Turning Milling Machine TCK600/TCK700 with Siemens 828D control
Model Number : TCK-600
* Stable performance and excellent structure
* High precision
* Automatic feeding
* Easy to operate
* Customized service provided


Detailed Photos
Quality CNC system Siemens 828D
Comply with the ergonomic interactive interface to complete the precision machining requirements . (Fanuc/Mitusubishi/Siemens/Syntec)
Choose Materials Carefully
Keep improving and use high-quality materials to make the machine last longer.
Quality castings
The base is cast as a whole, with a 45-degree inclined bed, high strength and good shock absorption .
10 Inch 3-jaw chuck
The chuck of this machine tool is a standard configuration, which can meet the processing needs of most users. Products from other manufacturers can also be configured according to user needs.
Tailstock

Thickened viewing shield
The observation shield is made of thickened material, which is more convenient for observation work.
12-Station Power Turret with live tools
Y-axis optional
Specifications :

Item		Unit	Specification	Remarks
The maximum turning diameter on the bed		mm	600
The maximum turning diameter on the slide		mm	350
Center distance		mm	850
Z direction maximum stroke		mm	750
X direction maximum stroke		mm	260
X/Z axis rapid traverse speed		M/min	20/20
Spindle end type and code			A2-8
Spindle through hole diameter		mm	Φ90
Tube inner diameter		mm	Φ75
Spindle	Spindle speed	r/min	2500
	Spindle speed series		CVT
	Main motor output power	kw	11-15 Servo spindle
Chuck	Chuck Diameter/Type	mm	10² Three claws hollow
Repeatability		mm	0.005
positioning accuracy		mm	0.01
Standard Tool Holder Form			12-station turret	servo hydraulic
Maximum stroke of tailstock sleeve		mm	120
Tailstock sleeve diameter			75
Machine weight		kg	4500
Machine tool dimensions (length x width x height)		mm	3300x1900x2300(excluding the length of the cutting machine)	Including chip removal machine length 4400

Main precision:

Test items	Factory Standard
Processing Precision	IT6
Processing workpiece roundness	0.003mm/Ф75
Consistency of machining diameter	0.010mm / 150mm
Processing workpiece flatness	0.010mm/Ф200mm
Processing workpiece surface roughness	outer circle Ra1.6μm
	Arc surface, conical surface Ra3.2μm

Main configuration of machine tool and list of purchased parts:

Serial No.	Name	Manufacturer	Models and Specifications	Qty	Origin
1	CNC system	Siemens	Siemens 828	1	Germany
2	Main motor	Siemens	11-15kw	1	Germany
3	X axis servo motor	Siemens	15NM	1	Germany
4	Z axis servo motor	Siemens	15NM	1	Germany
6	X/Z axis ball screw	TBI	4010/4010 C3	2	Taiwan, China
7	X-axis guide rail	HWIN/PMI	45 gauge roller	2	Taiwan, China
8	Z-axis guide rail	HWIN/PMI	45 gauge roller	2	Taiwan, China
10	Spindle bearing	NTUS	P4 grade	3	Germany
11	Screw bearing	NSK	25X62X15	4	Japan
12	Turret	Diamond Heart	12 stations	1	Taiwan, China
13	chuck, oil cylinder	KPT	hollow	1	Joint Venture
14	Tailstock	hydraulic	MT5	1
15	Hydraulic station	1.5KW	Montfort	1

FAQ
Q1: How can I choose the most suitable machines ?
A1: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .Q2: What's your main products of your company?A2: We specialized in CNC Milling Machine ,Vertical Machining Center ,Lathe Machines , Drilling Machine, Tapping Machine and so on.Q3: What's the Payment Terms ?A3: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight.Q4: What's the MOQ?A4: 1setQ5: What's the warranty?A5: One year.

---
