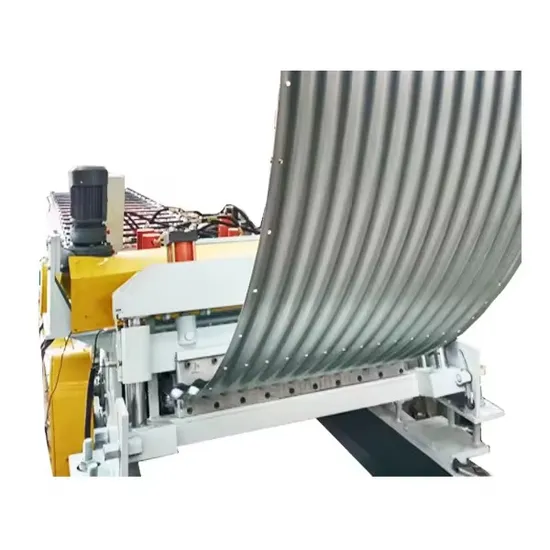

Automatic 2 in 1 Forming and Curving Metal Grain Silo Sheet Roll Forming Machine with Perforation

Product Description

Product Description
Kefa Full Automatic Steel Silo Granary Corrugated Panel Making Roll Forming Machine Commonly Used in Southeast Asian
Grain Bin Sidewall Roll Formers Sidewall Lines have been recognized for their robust design, 1mm-5mm thickness capability, a variety of pre- or post-punch / cut options, mechanical or hydraulic press system designs. They are reliable and accurate. Available destacking, stacking, and curving also make them extremely flexible.

Grain Bin Floor Roll Forming Lines
Grain bin floor manufacturing systems are the industry standard. Compact and flexible, they allow inline lancing and corrugating, or corrugating only of pre-perforated steel. Expert tool and fixture design offers maximum control of profile, crowning and twist. The flying, hydraulic, post-cut shear design increases throughput while minimizing scrap. Versatile and reliable Beck Automation controls enable operators to schedule floors in virtually any configuration.
Stiffener Roll Forming Lines Grain bin manufacturers know that punch accuracy and minimal flare are critical in stiffeners, and so do we. That's why offers a variety of robust, accurate stiffener line solutions to handle product ranging from 1mm to 4mm. Mechanical and hydraulic pre- and post-punch / cut designs mean we can provide a solution to nearly every stiffener manufacturing .
Grain Bin Roofing Roll Formers Demand for grain storage space is increasing, and with it the demand for larger grain bins. Grain bin roof lines that produce tapered grain bin roof panels are designed to keep pace with this growing demand. We offer hands free systems capable of producing finished bin sections, including flange bending and vent / access punching, from coil to finished product. Small diameter bins to large, multi-tier bins are well within our system capabilities. Partial systems are available as well, designed modularly to be added onto as capacity demands require.
Ladder Rail and Rung Roll Forming Lines Designs a full range of grain bin related manufacturing systems, including rafted ladder rung and rail lines for grain bins. These rafted systems allow for production of both ladder rails and rungs in one compact machine footprint. Specialized designed and manufactured tooling produces notched, dimpled, and rolled round-rung profiles, while another set of tools forms the CEE sections for ladder rails. Time- and space-saving rafted roll formers like these are another example of the innovative and flexible solutions we offer for manufacturing grain bin components and accessories.
PLC Control System
Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,It Can Finish The Production Automatically.

Product Parameters

Sr. No.	Component	Quantity
01	Decoiler 3 Ton	1 Set
02	Pitch Roll,Leveler and Feeder	1 Set
03	Roll Forming Main Machine	1 Set
04	Hydraulic Auto Punching Holes	1 Set
05	Changable Curving Part	1 Set
06	Hydraulic Auto Cutting	1 Set
07	Hydraulic Power Bank	1 Set
08	Elc. Control Panel (PLC Base)	1 Set

Main Features
1.The roll forming machine can rollform metal profile. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
2.Rollforming process:uncoiler, straightening,rollforming, cut to length,Runout table.
3.Fully Automatic Control System with PLC.
4.Easy operation: Key in the length and quantity on the control panel.
5.One year warranty.
6.we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.
7.One roll forming machine can produce one or two profiles.

Sr. No	Optional Component	Quantity
01	Hydraulic Coil Decoiler	1Set
02	Coil Car	1Set
03	Auto Stacker 20 Ft. Length	1Set
04	Electrical Coil Decoiler	1Set
05	Telescopic Type Machine Guard	1Set

Company Profile

Certifications

Packaging & Shipping

FAQ
1.How to maintain the machine?
Answer: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
2. Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
3.How many workers to operate the machine?
A:Only 1-2 workers.
4. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up .
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
5. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
6.How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.

---
