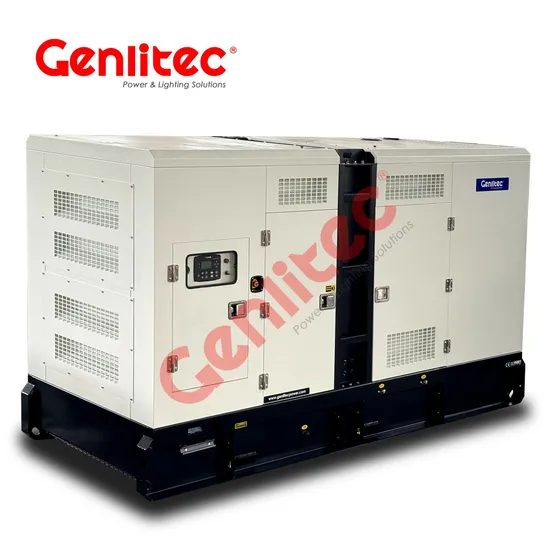

200kVA 160kw Standby Power Cummins Engine Low Noise Diesel Generator Set for Emergency Use

Product Description

Product Description 200KVA 160KW Standby Power Cummins Engine Low Noise Diesel Generator Set For Emergency Use
Δ STANDARD CONFIGURATION
1) Powered by brand new original CUMMINS water cooled diesel engine.
2) Brand new single bearing 3 phase alternator with IP23 and H insulation class.
3) Original 50ºC radiator with engine driven fan mounted on skid.
4) Standard DELIXI or CHINT branded case circuit breaker mounted.
5) Heavy-duty fabricated steel based frame with built-in fuel tank for at least 8 hours continuous running.
6) Complete set mounted on a based frame with anti-vibration mountings.
7) Industrial 9 dB muffler exhaust system with blexible connects and bellows.
8) Based frame with fuel, oil and coolant drain cocks for easy maintenance.
9) 12/24V DC electric start system with free maintain battery & smartgen brand battery charger.
10) Set mounted automatic control panel, with SMARTGEN, DEEPSEA, COMAP brand AMF controller module for automatic start & stop.
11) Test report of generator, set of drawings and manuals.
12) CE, ISO9001 approved
Δ TESTING ITEMS
GENLITEC POWER provides a full line of brand new and high quality products.
Each and every unit is strictly factory tested before shipment.
1) Parts faults testing
2) Fuel tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insulation testing
6) Noise testing
7) Loading Testing: 25%, 50%, 75%, 100%, 110% load to check verify that all control systems, alarm and shut-down protection.
Δ OPTIONAL SUPPLY
1) Weatherproof canopy / Soundproof canopy / Trailer-mounted
2) Engine / Alternator Pre-heaters
3) Auto load sharing & synchronization panel
4) Build-in ATS (Auto start & stop Main Failure (AMF)
5) Large 12/24 hours fuel tank
6) Power output sockets
Detailed Photos

Product Parameters Δ 50HZ, 1500RPM, 3 PHASE, 4 WIRES, 220/380V; 230/400V; 240/415V

Genset Model		Prime Power		Standby Power		Fuel Consumption	Engine Model	Cylinder Number	Displacement
Open	Silent	KW	KVA	KW	KVA	L/H (75%)			(L)
GPC20D5	GPC20S5	16	20	17.6	22	4.5	4B3.9-G11	4L	3.9
GPC28D5	GPC28S5	22	28	24	30	5.3	4B3.9-G1/G2	4L	3.9
GPC30D5	GPC30S5	24	30	26	33	5.7	4B3.9-G12	4L	3.9
GPC40D5	GPC40S5	32	40	35	44	7.3	4BT3.9-G1/G2	4L	3.9
GPC50D5	GPC50S5	40	50	44	55	10	4BTA3.9-G2	4L	3.9
GPC60D5	GPC60S5	48	60	53	66	12	4BTA3.9-G2	4L	3.9
GPC80D5	GPC80S5	64	80	72	88	13.2	4BTA3.9-G11	4L	3.9
GPC90D5	GPC90S5	72	90	80	100	14.1	6BT5.9-G1/G2	6L	5.9
GPC100D5	GPC100S5	80	100	88	110	16.9	6BT5.9-G1/G2	6L	5.9
GPC113D5	GPC113S5	90	113	100	125	20	6BTA5.9-G2	6L	5.9
GPC125D5	GPC125S5	100	125	110	138	23	6BTAA5.9-G2	6L	5.9
GPC138D5	GPC138S5	110	138	120	150	24	6BTAA5.9-G2	6L	5.9
GPC150D5	GPC150S5	120	150	132	165	26	6BTAA5.9-G12	6L	5.9
GPC180D5	GPC180S5	144	180	160	200	31	6CTA8.3-G2	6L	8.3
GPC200D5	GPC200S5	160	200	176	220	34	6CTAA8.3-G2	6L	8.3
GPC250D5-I	GPC250S5-I	200	250	220	275	39	6LTAA8.9-G2	6L	8.9
GPC250D5-II	GPC250S5-II	200	250	220	275	45.5	NT855-GA	6L	14
GPC275D5-I	GPC275S5-I	220	275	240	300	44	6LTAA9.5-G3	6L	9.5
GPC275D5-II	GPC275S5-II	220	275	242	303	46.1	NTA855-G1A	6L	14
GPC313D5-I	GPC313S5-I	250	313	275	344	46	6LTAA9.5-G1	6L	9.5
GPC313D5-II	GPC313S5-II	250	313	275	344	54	NTA855-G1B	6L	14
GPC350D5	GPC350S5	280	350	308	385	54.9	NTA855-G2A	6L	14

Genset Model		Prime Power		Standby Power		Fuel Consumption	Engine Model	Cylinder Arrangement	Displacement
Open	Silent	KW	KVA	KW	KVA	L/H (75%)			(L)
GPC375D5-I	GPC375S5-I	300	375	330	413	56	6ZTAA13-G3	6L	13
GPC375D5-II	GPC375S5-II	300	375	330	413	64.7	NTAA855-G7	6L	14
GPC400D5	GPC400S5	320	400	352	440	65	6ZTAA13-G2	6L	13
GPC450D5-I	GPC450S5-I	360	450	400	500	67	6ZTAA13-G4	6L	13
GPC450D5-II	GPC450S5-II	360	450	400	500	73	KTA19-G3	6L	19
GPC500D5-I	GPC500S5-I	400	500	440	550	74	QSZ13-G3	6L	13
GPC500D5-II	GPC500S5-II	400	500	440	550	82	KTA19-G3A	6L	19
GPC500D5-III	GPC500S5-III	400	500	440	550	82	KTA19-G4	6L	19
GPC525D5	GPC525S5	420	525	460	575	91	KTAA19-G5	6L	19
GPC575D5	GPC575S5	460	575	520	650	88.2	KTAA19-G6	6L	19
GPC650D5-SP	GPC650S5-SP	/	/	520	650	94	KTA19-G8	6L	19
GPC690D5-SP	GPD690S5-SP	/	/	550	690	95	KTAA19-G6A	6L	19
GPC650D5	GPC650S5	520	650	570	712	111	QSK19-G4	6L	19
GPC725D5	GPC725S5	580	725	640	800	115	KT38-GA	12V	38
GPC750D5	GPC750S5	600	750	660	825	128	KTA38-G2	12V	38
GPC800D5	GPC800S5	640	800	704	880	135	KTA38-G2B	12V	38
GPC910D5	GPC910S5	728	910	800	1000	147	KTA38-G2A	12V	38
GPC1000D5	GPC1000S5	800	1000	880	1100	161	KTA38-G5	12V	38
GPC1125D5	GPC1125S5	900	1125	1000	1250	178	KTA38-G9	12V	38
GPC1250D5	GPC1250S5	1000	1250	1100	1375	195	KTA50-G3	16V	50
GPC1375D5	GPC1375S5	1100	1375	1210	1512	238	KTA50-G8	16V	50
GPC1500D5	GPC1500S5	1200	1500	1320	1650	238	KTA50-GS8	16V	50
