Turnover Box Machine 480ton Full Automatic Horizontal Injection Molding Machine

Product Description

Horizontal Servo Plastic Injection Mold Making Equipment Suitcase Injection Molding Machine
Product Parameters

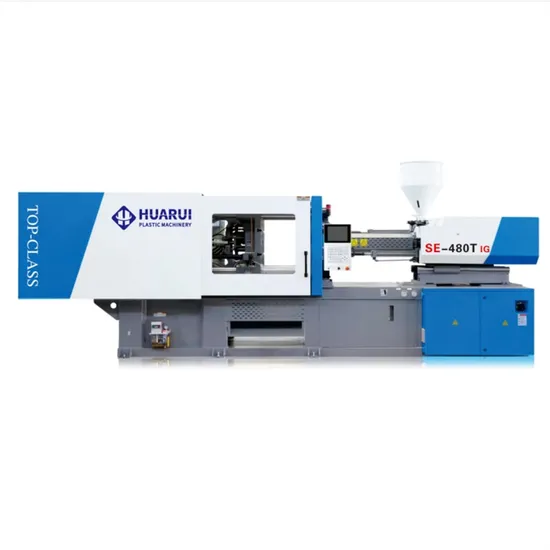

Se-480T/IG Plastic Injection Molding Machine Information
Item		Unit		A			B
Screw diameter		mm		95			100
Theoretical shot volume		cm³		2942			3259
Shot weight (PS)		g		3972			4400
Shot weight (PS)		oz		2148			2379
Length/Diameter ratio		L/D		18.5			17.6
Injection pressure		Bar		1241			1120
Injection rate		cm³/sec		1014			1124
Max.screw speed		rpm		200
Clamping force		KN		4800
Max.daylight		mm		1180*1130
Open stroke		mm		810
Space Between Tie-bars		mm		820*770
Min mould dimension		mm		300
Mould thickness range		mm		830
Ejector force		KN		120
Ejector stroke		mm		220
No.of ejector pins		unit		13
Max.motor power		KW		36+36
System pressure		MPa		175
Heater input power		KW		45
Oil filling capacity		L		600
Machine size		M		8.6*2.0*2.9
Net weight		KG		20000

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
Detailed Photos
