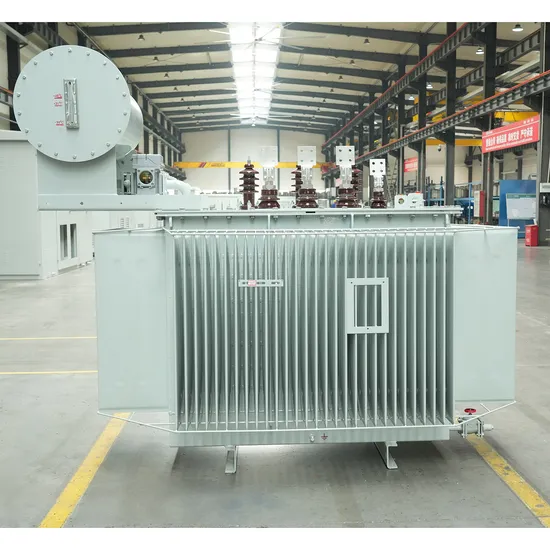

High Quality 500kVA Durable High Voltage Oil Immersed Distribution Power Electrical Transformer

Product Description

Product Description
Introducing our high-efficiency oil-immersed transformer, engineered to excel in energy saving and environmental sustainability. This state-of-the-art transformer utilizes oil as an insulating and cooling medium, providing remarkable power conversion capabilities and exceptional heat dissipation performance. Perfectly suited for power transmission and distribution systems, it is meticulously crafted to minimize energy consumption, enhance grid efficiency, and significantly reduce environmental impact. Key Features 1. Energy Efficient: With an optimized design, our transformer remarkably reduces core and coil losses, thus substantially boosting energy conversion efficiency and slashing operating energy consumption, making it a cornerstone of cost-effective power solutions. 2. Low Loss: Constructed from premium-quality silicon steel sheets and employing cutting-edge manufacturing processes, it dramatically minimizes no-load and load losses. This leads to a significant reduction in the overall operating costs of the power system, ensuring economic efficiency. 3. Excellent Heat Dissipation: Utilizing oil as a cooling agent, it efficiently dissipates heat through natural convection or forced oil circulation, guaranteeing stable operation even under high load conditions, thereby extending the lifespan of the equipment. 4. Environmentally Friendly Design: Fully compliant with both national and international energy-saving and environmental protection standards, it aids in reducing carbon emissions and environmental pollution, making it an ideal choice for green energy projects and modern eco-friendly power grids, promoting a sustainable future. 5. Safe and Reliable: Crafted with high-strength insulation materials and precision in manufacturing, the transformer ensures safe and stable operation even in the most complex grid environments, offering peace of mind and reliability.
Product Parameters

Product Model	Rated Capacity(kVA)	Connection Group	No-Load Loss	Load loss(W)(120°)
S11-M-50/35	50	Yyn0 Dyn11	160	1200/1140
S11-M-100/35	100		230	2010/1910
S11-M-125/35	125		270	2370/2260
S11-M-160/35	160		280	2820/2680
S11-M-200/35	200		340	3320/3160
S11-M-250/35	250		400	3950/3760
S11-M-315/35	315		480	4750/4530
S11-M-400/35	400		580	5740/5470
S11-M-500/35	500		680	6910/6580
S11-M-630/35	630		830	7860
S11-M-800/35	800		980	9400
S11-M-1000/35	1000		1150	11500
S11-M-1250/35	1250		1400	13900
S11-M-1600/35	1600		1690	16600
S11-M-2000/35	2000		1990	19700
S11-M-2500/35	2500		2360	23200

Product Advantages: Our oil-immersed transformer stands out for its exceptional qualities.
We offer tailored customization services to meet your specific needs.
Experience excellent insulation and superior heat dissipation performance.
Benefit from low no-load losses, reduced noise levels, and a remarkable long service life, ensuring lasting performance. Certifications
Company Profile
FAQ 1. What about the lead time?
Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, we arrange the production.
2. Can you do OEM?
Yes, we are 61 years factory,we can provide OEM (Original Equipment Manufacturer) services. We can customize the transformers according to your specifications, including branding, design, and packaging to meet your specific needs. Let us know your requirements, and we'll work with you to deliver a product that aligns with your request. 3. What is your payment terms?
T/T, L/C,Visa Paypal for different circumstances. 4. Do you have inspection procedure before shipping?
Yes,we do 100% QC inspection. 5. Do you offer guarantee for the products?
Yes. We offer at least two years warranty for all of our transformer.

---
