Fast Food Products Thermoforming Machine for High Speed PS Material Processing

Product Description

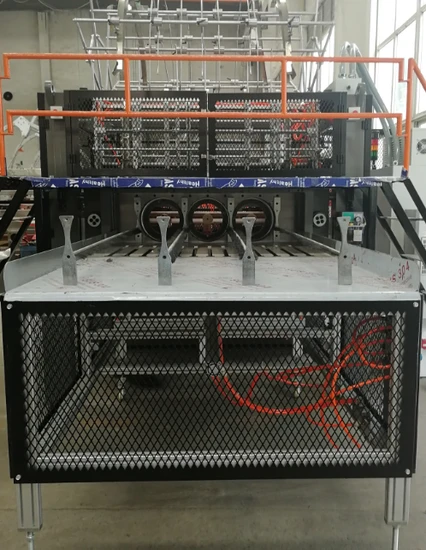

PS Foam Automatic Thermoforming Machine
This versatile machine includes not only the primary forming machine but also an efficient cutting machine, ensuring seamless operations and superior product quality.
Machine Features:- Outstanding features include a large forming and trim area, ensuring high production efficiency with a remarkable maximum forming speed of less than 2 seconds per cycle.
- Boasting a high clamping force of 60 Tons, this machine guarantees the production of high-quality products, making it ideal for vacuum forming, press forming, and
vacuum pressing processes.
- Equipped with a trimming press that incorporates automatic sheet feeding, precise position detecting, reliable counting, and efficient stacking.
- Compatible with a variety of sheet materials, including EPS, PVC, PP, BOPS, HIPS, PLA, PET, and more, offering unmatched versatility.
- The entire unit is powered by high-precision servo systems, a user-friendly human-computer interface, and advanced PLC control for superior automatic management.
- An in-line crusher seamlessly integrates crushed materials, which can be directed to a plastic recycle machine or a designated location, promoting sustainability.
Model Parameters: - HLRCH-1100/1300 - HLZCZ-1100
Max Forming Area: 1120x1295 mm² (44''x51'')
Max Forming Depth: 127 mm (5'')
Mould Clamp Force: 60 Tons
Dry Speed: Achieves up to 30 cycles per minute
Oven Length: 5300 mm
Installed Power: 330 KW
Installed Size (L x W x H): 14 x 2.2 x 2.5 m
Weight: 11 Tons
Max Efficiency Cutting Area: 1120 x 400 mm2
Max Cutting Height: 130 mm
Max Cutting Force: 35 Tons
Dry Speed: An impressive 150 cycles
Installed Power: 22 KW
Installed Size (L x W x H): 5 x 4.5 x 3.5 m
Weight: 8 Tons

---
