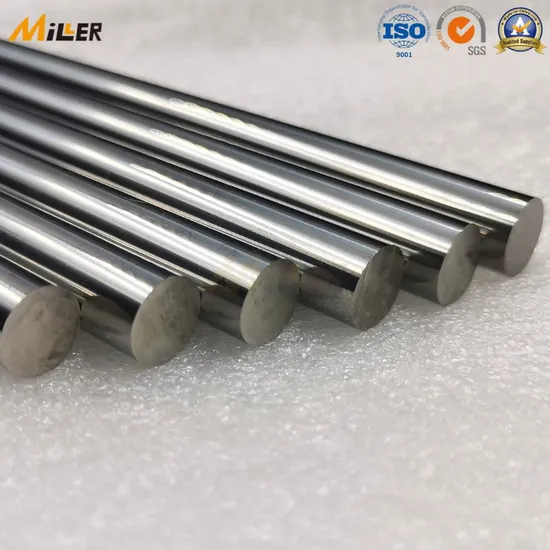

Cemented Carbide Ground Rods φ 12X330mm with Full Set Grades of Carbide for Cutting Tools

Product Description

Introduction
Miller Carbide aims to supply the first -class level tungsten carbide rods for cutting tool industry as well as the machining industry. Miller Carbide stands for more than 15 years of expertise in tungsten carbide. Patented extrusion technology, innovative grade developments, cylindrical grinding services along with our well trained employee enable us to offer you substantial price-performance advantages for high performance carbides.
We Offer Tungsten Carbide Rod
As sintered-solid carbide rods, rods for PCB tools, rods with central duct, rods with two straight coolant ducts, rods with two coolant ducts with helix 30°& 40° Ground -h4 /h5 /h6 /h7 Standard blanks, chamfered one end Non standard blanks cut to order
Product Details
Tolerance of Ground Rods' Diameter

Diameter	h4	h5	h6	h7
0-3.0 mm 0-0.1181 in	0.003mm 0.00012 in	0.004 mm 0.00015 in	0.006 mm 0.00024 in	0.010 mm 0.00039 in
3.001-6.0 mm 0.1181-0.2362 in	0.004mm 0.00015 in	0.005 mm 0.00020 in	0.008 mm 0.00031 in	0.012 mm 0.00047 in
6.001-10.0 mm 0.2363-0.3937 in	0.004mm 0.00015 in	0.006 mm 0.00024 in	0.009 mm 0.00035 in	0.015 mm 0.00059 in
10.001-18.0 mm 0.3938-0.7087 in	0.005mm 0.00020 in	0.008 mm 0.00031 in	0.011 mm 0.00043 in	0.18 mm 0.00071 in
18.001-30.0 mm 0.7088-1.1811 in	0.006mm 0.00024 in	0.009 mm 0.00035 in	0.013 mm 0.00051 in	0.021 mm 0.00083 in
30.001-50.0 mm 1.1812-1.9685 in	0.007mm 0.00028 in	0.011 mm 0.00043 in	0.016 mm 0.00063 in	0.025 mm 0.00098 in

Rods Surface Roughness

Type	Accuracy
Polished Rods	0.00-0.05μm
Ground Rods	0.00-0.10μm
Dull Finished	0.10-0.20μm

The standard roundness tolerance of the ground rod is 0.002 mm.
Packaging

Reviews From Customers
Company Profile
Miller Carbide is an experienced manufacturer of tungsten carbide customized parts started from 2008. Our products cover carbide grinding jars & mortars, carbide grinding balls, carbide pegs, carbide static & dynamic rings, bead mill disks, carbide stirring rods, carbide static & dynamic jaws, carbide crusher plates, carbide grinding discs, carbide rotors, carbide roll rings, carbide guide rolls, carbide burrs, carbide sleeves & bushings, and other customized wear-resistant components for valve and pumps ect. With years of tungsten carbide engineering and manufacturing experience, we can concentrate our skills to the development of customized products for a wide spread of wear applications in milling & crushing industry.
Unlike other suppliers, Miller operates with three disciplines: Engineering, manufacturing and after sale service support. This means we are able to improve the efficiency of your machine and tools with customized products and direct access to the manufacturer. Miller Carbide works closely with its customers to ensure their requirements are designed efficiently and suitable for application. We can design the components needed from drawings or delivered samples.
We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. We are sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.

Company Advantage
We Offer You These

Direct Sales Integrating R&D, production sales and technology

Mold customization Rich molds OEM customization accepted

Adequate equipment grinding/pressing sintering/deep processing

Technical strength 15 years of experience in technical team, research & innovation

FAQ
1. How long is your delivery time?
We can arrange the shipment within 3-5 working days upon receipt of your payment for any sintered blanks stocked items. As for the mass production order or the customized products, we will need 10-30 days production leadtime and indicate the delivery time on the Proforma lnvoice.

2. Can l get a sample from you for Quality checking? Is it free of charge or need pay ?
Yes, we can offer the sample for free of charge with freight collected if we have in stock.
If the sample is special or non-standard shaped, we will charge you only the basic production costs accordingly.

3. What's grade should I choose for the product?
If you have no idea about the grade, please kind to provide the information of the usage of the product, our technical team will suggest the most suitable grade for you.

4. Do you use recycle materials?
We insist on quality come first, all the products are made of virgin raw materials.

5. Can you make the goods according to my sample or drawing ? What's your (MOQ) minimum order quantity?
Yes, We have a group of experienced technical personnel, advanced mould production equipments. Our R&D teams were graduated from University, and our technical R&D team lead by Doctors of Powder Metallurgy and Professors.
For the customized item we quote the MOQ individual; For the standard items in stock, we have no limitation on the MOQ .

6. Can I negotiate the Prices?
Yes, we can consider the discount for bulk orders.

7. Can you give warranty of your products?
Yes, we can give you 100% satisfaction guarantee on all items. We have the independent inspection department with the complete advanced product quality testing instrumentation to carry out IQC, PQC, FOC, and the detailed inspection pictures and testing report will be available and sent to you for confirmation before delivery.
In case there was any quality problem, just please kindly to provide the pictures to show the problem by email. We should be 100% responsible for our problems and provide you the replacements at our costs.
