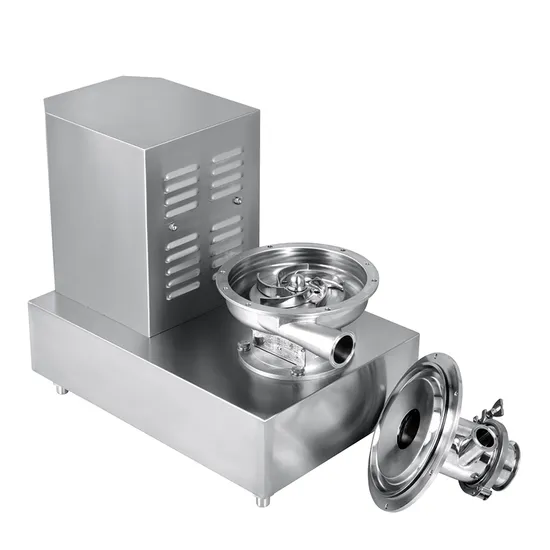

316L Sanitary Mixing Stainless Steel Pump With Optional Pneumatic Vibrator
HHQ series mixing pump is for mixing solid or powder into the liquid. It provides on-line perfect processing solutions for milk powder compounding, syrup making and brine making etc. It also can be used for preparing solid and powder mixing, in the industries of food and beverage, biopharmacy, traditional Chinese medicine making, cosmetics and chemicals.
Solutions for emulsifying, mixing, adjusting, multi-tasking, powder and liquid mixing.
| Product Name: | Mixing Pump |
| Valve Body Material: | SS304/SS316L/1.4301/1.4404 |
| Max. Flow: | 60m3/H |
| Seal material | EPDM (Standard, FDA approval) |
| Max. hopper volume: | 65L |
| Max solid suction volume: | 9000kg/h |
| Mechanical seal: | SIC/SiC/EPDM(Standard) |
| Motor power: | 3KW~15KW |
| Sealing option: | Single mechanical seal/Double mechanical seal with cooling system |
| Voltage: | 110V, 220V, 380V |
| Motor: | ABB |
| Surface treatment: | 0.8/0.6/0.4 micrometer |
| Connection way: | Clamped, Threaded, Flanged etc. |
| Standard: | DIN, SMS, 3A, RJT, ISO, IDF |
| Operated: | Electic |
| Option: | Manual valve or pneumatic valve, trolley, control panel |
| Certificate: | 3-A-02-10(N.O.1579), MD/06/42-EC(NO.70521616101-00), FDA 177.2600 |
| Application scope: | Dairy, food, beverage, pharmacy, cosmetic etc |
| Packaging Details: | Plywood case |
