Full Automatic Container Mixer for Powder Coating Equipment

Product Description

Full Automatic Container Mixer for Powder Coating equipment
Website: ytopsun.en.made-in-china.com, ytopsun.en.made-in-china.com

Automatic Container Mixer

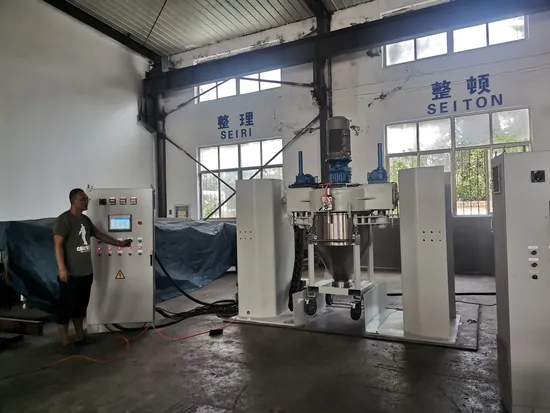

Automatic container mixer is working with continuous material trolleys, the container fills the materials and lifted up and connnected tightly with mixing head automatically. The mixing head tilts together with the containers, and then obtain the homogeneous mixing result, after finishing mixing as per setting time, and return to original position, the whole process will be controlled by PLC
Main Features:
Several detachable containers for circular operation
High efficiency
Adopting PLC to realize automation
Homogenized mixture
No curing granule
Convenient for cleaning and maintenance
Safe and relaiable operation
Technical Datas:

Model	Volume (L)	Output (kg/tank)	Mixing Motor (kw)	Overturing Motor (kw)	Crushing Motor (kw)	Mixing Time (min)	Control Mode	Overall Dimensions
FHJ-150	150	70	5.5	0.37	2.2	0-10	PLC	2150*1100*2300
FHJ-300	300	150	15	3	2.2	0-10	PLC	2150*1100*2300
FHJ-600	600	300	22	4	4	0-10	PLC	2650*1250*2700
FHJ-1000	1000	500	30	4	4	0-10	PLC	2900*1550*3100
FHJ-2000	2000	1000	45	5.5	5.5	0-10	PLC	3500*2350*3650

Company:
Dongsun is a leading manufacturer in China of Powder Coating Production Equipments, i.e. Mixers, Extruders, Cooling Belt and Air Classifier Mill. We inherit 30 years of experiences in this industry and have exported to nearly 30 countries and regions in the past 10 years, and win widely good reputations.
We passed CE certification approval and ATEX explosion resistant test, etc. international standards, we do know how to meet the diversified and customized made requests of our customers.
Our everlasting business philosophy: consistant quality, effective communication, responsible service.
1. Automatic Container Mixer
Automatic container mixer is working with continuous material trolleys, the container fills the materials and lifted up and connected tightly with mixing head automatically. The mixing head tilts together with the containers, and then obtain the homogeneous mixing result, after finishing mixing as per setting time, and return to original position, the whole process will be controlled by PLC
Main Features:
Several detachable containers for circular operation
High efficiency
Adopting PLC to realize automation
Homogenized mixture
No curing granule
Convenient for cleaning and maintenance
Safe and reliable operation
Technical Data:

Model	Volume (L)	Output (kg/tank)	Mixing Motor (kw)	Overturing Motor (kw)	Crushing Motor (kw)	Mixing Time (min)	Control Mode	Overall Dimensions
FHJ-150	150	70	5.5	0.37	2.2	0-10	PLC	2150*1100*2300
FHJ-300	300	150	15	3	2.2	0-10	PLC	2150*1100*2300
FHJ-600	600	300	22	4	4	0-10	PLC	2650*1250*2700
FHJ-1000	1000	500	30	4	4	0-10	PLC	2900*1550*3100
FHJ-2000	2000	1000	45	5.5	5.5	0-10	PLC	3500*2350*3650

Company:
Dongsun is a leading manufacturer in China of Powder Coating Production Equipments, i.e. Mixers, Extruders, Cooling Belt and Air Classifier Mill. We inherit 30 years of experiences in this industry and have exported to nearly 30 countries and regions in the past 10 years, and win widely good reputations.
We passed CE certification approval and ATEX explosion resistant test, etc. international standards; we do know how to meet the diversified and customized made requests of our customers.
Our everlasting business philosophy: consistent quality, effective communication, responsible service.
2. High Speed Premixed:
Features:
High efficiency & easy operation
Easy color changing, safe cleaning
Combined mixing & crushing as one
Mixing time presetting, short & homogeneous
Excellent sealing, powder leaking free
Vertical or horizontal type as optional
Technical Parameters:

Model	Volume (L)	Mixing Motor (kw)	Crushing Motor (kw)	Mixing Time (min)	Overall Dimensions (mm)
GHJ-20	20	0.55	0.37	3-5	700*500*800
GHJ-100	100	3	1.5	3-5	1000*600*900
GHJ-200	200	5.5	3	3-5	1500*900*1400
GHJ-300	300	7.5	4	3-6	1800*900*1400
GHJ-500	500	15	5.5	4-6	1800*1300*1800
GHJ-800	800	18.5	7.5	4-6	1900*1300*2000
GHJ-1000	1000	22	7.5	4-6	2300*1400*2000

Company:
Dongsun is a leading manufacturer in China of Powder Coating Production Equipments, i.e. Mixers, Extruders, Cooling Belt and Air Classifier Mill. We have exported to nearly 30 countries and regions in the past 10 years, and win widely good reputations.
We passed CE certification approval and ATEX explosion resistant test, etc. international standards; we do know how to meet the diversified and customized made requests of our customers.
Our everlasting business philosophy: consistent quality, effective communication, responsible service.
3. Double Cone Blender:
Features:
This twin-cone mixer is composed of a rotating container with two cones and two stirrers. This machine is applicable for powder coating, pharmaceutical, chemical, foodstuff, dyestuff, and other multi-compound materials. It has remarkable effect in mixing powders and particles with relatively good fluidity. Its barrel is made of stainless steel, which is polished both inside and outside, featuring beautiful appearance and easy operation.
Technical Parameters:

Model	Volume (L)	Output (kg/tank)	Rotating Motor (kw)	Mixing Motor (kw)	Mixing Time (min)	Overall Dimensions (mm)
SXH-100	300	150	1.5	1.5	0-30	1760*830*2030
SXH-200	400	200	1.5	1.5	0-30	1830*830*2150
SXH-300	600	300	2.2	1.5	0-30	1980*1000*2275
SXH-500	1000	500	4	4	1-30	2630*1140*2620
SXH-1000	2000	1000	5.5	5.5	0-30	3060*1440*2860
SXH-1500	3000	1500	7.5	7.5	0-30	3700*2000*2970
SXH-2000	4000	2000	8.5	8.5	0-30	3800*2500*3500

V SHAPE MIXER
This mixer is suitable for the mixing of dry granule materials for pharmacy or other relative industries.
Specialty
Unique mixing cylinder, high mixing effects , no dead angle , even mixing.
Technical Parameter

Model	Total volume m³	Capacity	Model of auxiliary vacuum pump	Charge-in time min	Mixing time min	Cylinder speed rpm	Power kw	Overall size L×W×H mm	Gross rotation height mm	Weight kg
V-180	0.18	40			4-8	12	1.1	1780×680×1700	1870	290
V-300	0.3	60			6-10	12	1.1	1880×680×1700	1870	300
V-500	0.5	100	WL50	4-6	6-10	12	2.2	2500×1350×2450	2450	550
V-1000	1.0	200	WL50	6-9	6-10	12	4	3055×1650×2700	2940	850
V-1500	1.5	300	WL50	6-10	6-10	12	4	3343×1650×2980	2940	1020
V-2000	2.0	400	WL50	12-18	6-10	12	7.5	3820×1900×3480	3670	2040
V-2500	2.5	500	WL50	12-18	6-10	12	7.5	3990×1900×3540	3800	2200
V-3000	3.0	600	WL50	12-18	6-10	7.8	7.5	4690×2200×4000	4000	2500
V-4000	4.0	800	WL50	12-18	6-10	7.8	711	4950×2200×4230	4290	2800

Company:
Dongsun is a leading manufacturer in China of Powder Coating Production Equipments, i.e. Mixers, Extruders, Cooling Belt and Air Classifier Mill. We have exported to nearly 30 countries and regions in the past 10 years, and win widely good reputations.
We passed CE certification approval and ATEX explosion resistant test, etc. international standards; we do know how to meet the diversified and customized made requests of our customers.
Our everlasting business philosophy: consistent quality, effective communication, responsible service.
4. Why choosing us?
Our boss has worked in this industry for more than 13 years.
Our vice GM has worked in this industry for more than 20 years.
Our technical manager has worked in this industry for more than 7 years.
Our production manager has worked in this industry for more than 8 years.
We have an excellent team. We are experienced, excellent, friendly and responsible, with a view to long term cooperation.

---
