Soybean powder pulverizer - ultrafine pulverizer

Product Details

Product Description

Product Description
Soybean powder pulverizer - ultrafine pulverizer
Pulverizer APPLICATION

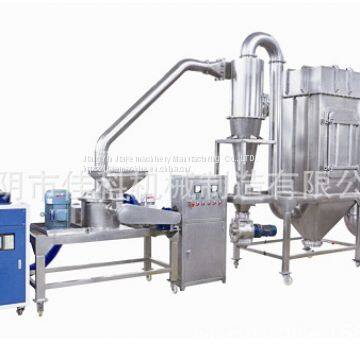

Soybean ultrafine pulverizer Machine is made up of three parts: main machine, auxiliary machine and electric control box. It has the properties of wind selection, having no sieve or net, and an even granularity of the processed material。 The production process going on continuously。
Soybean Powder pulverizer can undertake the grinding of chemical products,food,medcine, medicament, cosmetics, plastic, dyestuff, resin, cotourant, grain, etc。
The soybean ultrafine crusher is a type of ultrafine crusher designed and manufactured by our company. The crushing of materials and the classification of powder particles are installed in the same machine body and operate independently.
The soybean powder pulverizer has the characteristics of full functionality, compact structure, stable technical performance, low power consumption, wide adaptability, no dust generation, adjustable powder fineness (60-500 mesh), and simple maintenance. It is widely suitable for ultrafine pulverization in different industries such as food, pharmaceuticals, chemicals, cosmetics, and agricultural products. The pulverization and grading of materials to finished products are carried out in the same closed system, and after dust removal treatment, it does not pollute. It is currently an ideal complete set of environmental protection equipment。
Work method
Soybean ultrafine pulverizer is fed into the crushing chamber between the machine body and the guide ring through a screw feeder at the feeding port. In the crushing chamber, the material is impacted by high-speed rotating blades, causing it to be thrown towards the gear ring fixed on the machine body, resulting in collision, shear, and alternating crushing between the material and the blades, friction, and shear。
The crushed material, under the pulling force of negative pressure airflow, overcomes its own weight and passes through the guide ring with the airflow, entering the classification chamber. The graded impeller is composed of blades, and the high-speed rotating blades generate centrifugal force opposite to negative pressure。The powder particles sinking into the blade passage are simultaneously subjected to the centripetal force of the negative pressure airflow, the self weight of the powder particles, and the centrifugal force generated by the impeller. Particles larger than the critical diameter (graded particle size) in the powder particles are thrown back to the crushing chamber for further crushing due to their large mass, while particles smaller than the critical diameter enter the cyclone collector through the discharge pipe and are discharged through the discharge valve。The higher the rotation speed of the grading impeller, the finer the graded powder particles. Adjusting the rotation of the grading impeller is the determining factor in controlling the size of the powder particles。
TECHNICALPARAMETERS

Item	Unit	WFJ-15	WFJ-20	WFJ-30
Production Capacity	kg/h	10-200	20-450	60-800
Diameter of Feeding Material	mm	≤50	≤50	≤50
Diameter of Finish Material	mesh	100-500	100-500	100-500
Power	kw	13.5	22	46
Main Rotating Speed	r/min	6000	4800	3800
Overall Dimension(L×W×H)	mm	4200×1200×2700	4700×1200×2900	9000×1500×3800
Weight	kg	850	980	1500

MAIN FEATURE
1) Simple structure, easy in installation and maintenance.
2) Adopting advanced world famous brand motor, electric parts,bearing and operation parts.
3) No dust during production, and dust can be collected in dust collecting box.
4)No need screen, particle size can be changed by change speed; particle size varies from 100 to 500 mesh.
5) Around this powder making machine chamber and bearing, there is water-cooling jacket to cool the machine.
6)The machine can be applied to the following materials:like tea,sugar,ginger,leaf,moringa,herb, dry dates, mushroom,dried wood, chickpeas, gypsum,dry fruit and vegetable,arabic gum etc.
The above specifications are provided for reference only. We can also design and manufacture different standard upon customer's request.
Pre-Sales Service
1、Inquiry and consulting support with 24 hours
2、Sample testing support.
3、View our Factory.
After-Sales Service
1、Instructing how to install the machine, insutructing how to use the machine.
2、Engineers available to service machinery overseas.
Packing & Delivery

Packaging
Size	Depends
Weight	Depends
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	20 ft container; 40 ft container
Weight	denpends
Packaging Details	If machine is big, we will fix the machine inside container with steel wires and nails.Machine won't move inside the container.
