2020 High Precison Vgrind&Nbsp; Grinding Machine

Product Description

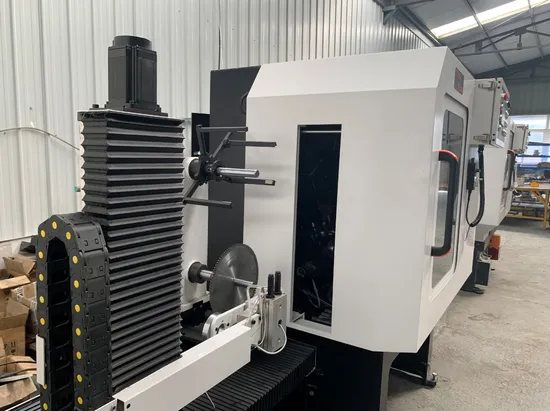

ATZ400 CNC TOP Sharpening Machine with Robot High-level productivity & precision grinding machine for carbide tools.

Advantages of saw blade sharpener • More precision- grinding precision: <0.025mm,be impressed by the higher accuracy. • More efficiency- experienced productivity on a higher level • More user comfort- simplify your work • More flexibility-for precision in any requirement
• More Function- grinding TOP of saw blade
CNC Control- High Precision is flexible to control ultra-precision grinding as requirement.
3-D Graphics Grinding Machine
Technical Premeter

Saw Diameter	140~400mm
Bore Diameter	15.88~50mm
Plate Thickness	<8mm
Top Angle	-10°~+26°
Bevel Angle	-45°~+45°
Pitch	<60mm
Kerf	<6mm
Wheel Power	1.1KW
Wheel Size	125mm*32mm*25mm
Wheel Speed	4200RPM
Wheel Linear Velocity	28m/s
Grinding Speed	1mm~15mm/s
Processing Efficiency	4~20 s/tip
Grinding Accuracy	<0.025mm
Coolant Tank	150L
Cooling Water Flow	70L/min
Input Voltage	380V 50Hz(OR 220V 60Hz)
Power	Approx 3.8KW
Dimension	2750mm*1200mm*1850mm
Weight	1900kg

Configuration

Ball Screw	IF(Germany)
Roller Guide	HIWIN(Taiwan)
Pneumatic Parts	SMC(Japan)
Servo Motor	Inovance
PLC	Inovance ARM600
Harmonic Drive	Inovance

FAQ 1. How to chooce best saw blade grinding machine? - Best grinding machine process tools with higher precision & long service life. 2. How is the performance of TORSEL saw blade grinding machine? - TORSEL saw blade grinding machine process tool with excellent precision <0.025mm,the service life is upto 7-15 years. 3. Whats your cooperation companys?

---
