Product Details
Product Description
Product Description

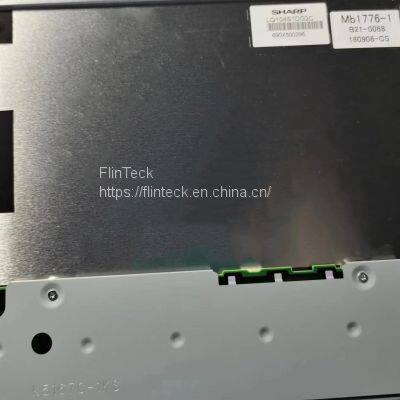

Panel brand Sharp
Panel model LQ104S1DG2C.
Panel size 10.4 inches
Panel type a-Si TFT-LCD, LCD module.
The resolution is 800(RGB)×600, SVGA, 96PPI.
Pixel layout RGB vertical bars.
Display area 211.2(W)×158.4(H) mm
The external dimension is 246.5 (w) × 179.3 (h) × 11 (d) mm. ..
The visual size is 214.6 × 162.4 mm (H×V).
Surface treatment fog surface, Hard coating (3H).
Brightness (CD/m) 350 (typ.)
Contrast ratio is 500: 1 (Typ.) [transmission].
Angle 6 o'clock
Optical mode TN, normally white display, transmissive
The viewing angle is 70/70/50/60 (Typ.)(CR≥10).
The response speed is 35 (typ.) (tr+TD) ms.
Color quantity 262K
Backlight type WLED, 50K hours, including LED driver.
Screen weight 550g (Typ.) is suitable for.
The refresh rate is 60Hz, and the touch function has no touch.
Signal system Parallel RGB (1 ch, 6-bit), terminal, 41 pins.
The supply voltage is 3.3V (Typ.).
Rated storage temperature:-30 ~ 80 C and working temperature:-30 ~ 80 C.
>>
