Beyond Hot Sale Drill Swivel for Skid-Mounted Drilling Rig

Product Description

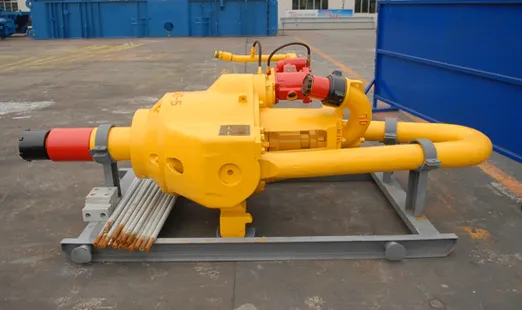

Water Swivel of Type SL is necessary hoisting equipment for hanging drill pipes in oil well drilling and repairing. They aredesigned and manufactured according to API Spec 8A/8C Specification of drilling. (The price here is for your reference. If thereis interest in the product, please feel free to contact.)The drilling faucet mainly consists of the following parts:
Valve: This is a key component for controlling fluids, which includes various types of valves, such as three-way valves, baffle valves, and ball valves.
Fluid control equipment: These devices are used to control the flow and pressure at the wellhead, such as misaligned cone wheels and elastic throats.
Connector: They are responsible for connecting the wellhead to the drill pipe.
Inner pipe: composed of piston, sealing gasket, valve disc, shock absorber pad, spring and other components. The piston is the core component of the faucet, and its upper end is connected to the inner pipe, while its lower end is connected to the drill pipe.
Outer pipe: composed of steel pipe body, ball gate, joint and other parts, its main function is to cooperate with other components, ensure sealing with the wellhead, and prevent mud overflow at the wellhead.
The above components work together to meet the water supply demand during the drilling process.Our Advantages1.One stop service. We provide various drilling equipment and accessories for overseas clients in different drilling fields. Including oil drilling and repair machines, horizontal drilling rigs, horizontal directional drilling rigs, mud pumps and accessories, solid control systems and equipment, etc. It can meet various needs of customers.
2. Quality assurance. Our supplier's products are strictly produced according to standards and provide corresponding after-sales service to customers, actively handling and solving a series of problems encountered by customers during use.
3. Professional team. In terms of production research, we have sufficient technical talents to support the product production line and ensure product quality; In terms of sales, we have professional and enthusiastic service personnel to ensure the sales and after-sales service of our products, and to ensure the stability and durability of our cooperative relationship.
4. Fast delivery. Our company has dedicated tracking personnel to ensure the normal production and delivery of orders.Product Parameters

Model	SL135	SL170	SL225	SL315	SL450
Max Static Load	1350KN	1700KN	2250KN	3150KN	4500KN
Dynamic Load	1000KN	1300KN	1600KN	2100KN	3200KN
Max. Speed	300	300	300	300	300
Max. Pressure	35MPA	35MPA	35MPA	35MPA	35MPA
Bore thru stem	64mm	64mm	75mm	75mm	75mm
Gooseneck Connection	4LP	4LP	4LP	4LP	4LP
Sub Connection	6 5/8	6 5/8	6 5/8	6 5/8	6 5/8
Size(mm)	1896*660*780	2060*820*822	2296 *1010*957	2418*1056*1040	2570 *1096*1012
Weight(kg)	1500	1700	2600	3000	3400

Packaging & Shipping

Packaging	Customized according to customer needs
Shipping	1)Ocean shipping 2)Air transport 3)Select according to customer needs

Company ProfileSHANDONG BEYOND PETROLEUM EQUIPMENT Co., Ltd. is established on request of customer and aimed to supply best product and service for the customer. It focuses on to supply best solutions for the overseas oilfield customer on equipment spares maintenance and supply.
China has become main supplier for oil production countries, but Chinese equipment has some special features different with European and American countries, and there exits big language and cultural difference between China and other countries, so it has become one big challenge for the overseas customer to get the exact equipment and parts they need in a short time.However, BEYOND takes root in China, and has very good cooperation relationship with most of famous factories, plus strong technical support and good advantage in language. Therefore, BEYOND is quite capable to help the customer to solve this challenge.BEYOND products cover but not limited to: China-make oil drilling rigs, workover rigs, wellhead and downhole tools, drilling tools, OCTG and other related equipment and parts.Meanwhile, BEYOND can offer technical services personnel training and maintenance guide towards China-made drilling rigs. Only if it is what you need, BEYOND can get it for you: From best factories, with most competitive price and within shortest lead time.Service Purpose"Professional& Efficient, Customer Focus, win-win Cooperation"as its operation principle, BEYOND believes that it will become your best cooperative partner in China.
"Professional Efficient, Customer Focus, Win-win Cooperation"
"Professional Oilfield Equipment and Parts Supplier"FAQ1. Are you trading company or manufacturer?We are professional trading company with 11 years export experience build base on our mud pump manufacturer, we are exclusive agent, and mainly products are oil drilling rig, drilling mud pump, related oilfield drilling equipment, construction machinery, water well drilling rig and etc. Our products have been exported to more than 20 countries of Azerbaijan, Kazakhstan, Asia, South America, Africa, India, Egypt, and get a good reputation in the world.2. Are your products qualified?Yes, our products all have gained ISO certificate,API, and CE, Ghost, and we have specialized quality inspection department forchecking every machine before leaving our factory.3. How about your machine quality?All of our machines must pass a great number of strict testing in order to offer the best quality to our customers.4. Do you have after-sale service?Yes, we have professional technic after-sale service team which will offer you the best technical maintenance guidance. Engineersare available to be abroad for service.5. What about the quality warranty?We offer one-year quality warranty.6. How long can you deliver the machine?Generally, parts mainly have at stock , pumps we can delivery in 20 working days.

---
