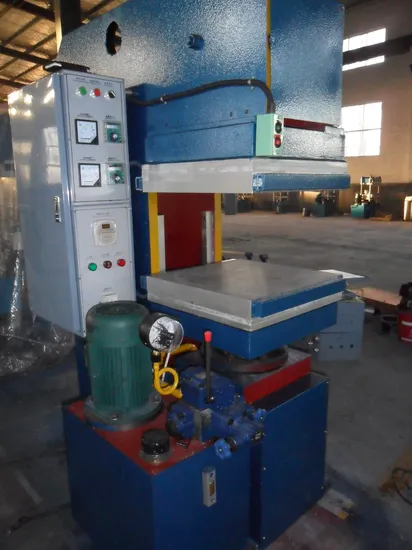

C Type Vulcanizing Press/Oil Seal Making Machine/Rubber Molding Hydraulic Curing Press

Product Description

C Type Vulcanizing Press/Oil Seal Making Machine/Rubber Molding Hydraulic Curing Press Machine








Product Description 1. The Rubber Wristband Making Machine is composed of press plate, up and down platform, piston stroke, hydro-cylinder, hydraulic station and pillar column.
2. The hot plates are obtained by 35# steel plates after normalizing handling and then adopting double scale rolling.
3. Up and down platforms adopts Q235 steel plates. In order to guarantee the make precision, it is applied with automatic cutting baiting, mechanical slicer producing welded groove, carbon dioxide gas shielded welding. It all adopts alloy welding wire welding and after welding takes whole enter into stove to go on the hot treatment to remove the welding stress exhaustively. And then go on mechanical producing to guarantee it won't become deformed.
4. The cylinder's material is QT500-7 and HT200 for piston. Moreover, we can also manufacture the cylinder with ZG270-500 material and piston with cold hard chilled alloy cast iron.
5. And sealing structure applies the combined structure with double sealing ring and one dustproof ring to guarantee longer service. The piston rise and fall under the working hydraulic pressure. When the piston fall(plates starting to work) depending on the weight of the plates, platform and piston to drive the hydraulic oil flowing back oil stock container to realize falling purpose.
6. The assembled oil pump is the source of power of press which supplies working oil with certain pressure. The oil enter into cylinder through controlling valve and move the hand shank to different places to realize the rising and falling of the piston.
7. The electrical controlling system adopts automatic and semi-automatic controlling method. When adopting automatic controlling way, it can be switched into manual control.

Parameters

We can design various rubber wristband making machine according to your requirements.

Model	Total Pressure	Daylight (mm)	Working Layer	Piston Stroke(mm)	Main Motor Power(KW)	Overall Diameter (LxWxH)(mm)
XLB-350x350x2	0.25	125	2	250	2.2	1200x580x1200
XLB-400x400x2	0.50	125	2	250	2.2	1400x500x1400
XLB-600x600x2	1.00	125	2	250	2.2	1880x820x1680
XLB-750x850x4	1.60	125	4	500	3	1730x930x2460
XLB-900x900x2	2.5	200	2	400	4	2345x960x1385
XLB-1200x1200x1	3.15	300	1	300	4	2800x1300x2300
XLB-1300x2000x1	5.60	400	1	400	8	2000x1860x2500
XLB-1500x1500x1	8.00	800	1	800	16.5	2200x2200x4300
XLB-1500x2500x1	15.00	400	1	400	11	3000x2500x3300
XLB-2000x2000x1	20.00	400	1	400	11	3600x3000x3300

---
