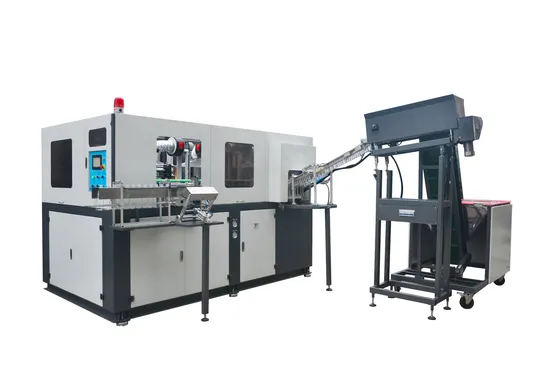

4000-5000PCS/Hour Bottle Blow Molding Machine

Product Description

HY-4000 is the fastest liner blow molding machine in mainland of China by now. HY-4000 reaches around 5500BPH for 350ML bottle. Its baking tunnel is separated from the blow station so that time for mold opening is shortened with a result of speedy blowing and high output, damage to machine is lessened so as to keep reliable performance and prolong service life, as well as machine runs more smoothly and steadily.
HY-4000 is controlled by PLC. The whole process from preform feeding to bottle discharging is completed automatically with advantages of labor saving and no pollution. HY-4000 consists of three main parts: preform loading system, Heater channel & blow station. MACHINE FEATURES:
1.REASONABLE DESIGN OF THE MACHINE . SAVE THE SPACE OF THE WORKSHOP
2.AUTOMATIC PREFORM FEESING SYSTEM .
3. HIGH QUALITY PLC CONTROL SYSTEM ,ALL SETTING WILL BE CONTROLLED BY THE TOUCH SCREEM
4. SPECIAL HEATING SYSTEM . USE INFRARED LAMP TO HEATING THE PREFORM . HEATING UNIFORM . .
5. SPECIAL MACHINE WORKING SYSTEM , SIMPLE AND STEADY
SPRCIAL AIR SOTRE SYSTEM . THE AIR DIVIDE INTO 3 TYPES . MOVEMENT AIR , PRE-BLOWING AIR , HIGH PRESSURE BLOWING MACHINE . THESE 3 TYPES AIR HAVE INDEPENDENT TANK .,SO CAN SUPPLY 3 TYPE PRESSURE AIR .
6. REASONABLE COOLING SYSTEM . MAKE SURE THE NECK PART OF THE PREOFRM WILL NOT CHANGE DURING HEATING .
7. ALL MACHINE MOVEMENTS ARE DRIVING BY THE AIR CYLINDER . SO ALL BOTTLE WILL NOT CONTAMINATE DURING BLOWING .
8. ALL MOVEMENTS HAVE SAFTY LOCKING DEVICE , THE MACHINE WILL RESET TO SAFTY POSITION ONCE THE MOVIMENTS ARE WRONG .
9.THE CLAMPING SYSTEM OF THE MACHINE US HIGH PRESSURE LOCKING SYSTEM , MAKE SURE THE BOTTLE WILL NOT HAVE CLEAR CLAMPING LINE .
10. ALL MOVEMENTS HAVE MAUANLLY AND AUOTMATICLY DRVING SYSTEM . IT IS EASY FOR SETTING AND INSTALLATION .
11. MACHINE CAN CONNECT TO THE AIR FEEDING MACHINE OF THE FILLING MACHINE DIRECTLY , IT IS MUCH EASIER FOR THE CUSTOMER .
12. THE MACHINE CAN STRORE THE TIME AND TEMPERATURE SETTING FOR 6 KINDS MOULD . IT IS MUCH EASIER FOR THE CUSTOMER WHEN THEY CHANGE THE MOULD
13. THE MACHINE HAVE SPECIAL INFRARED SENSOR . IF THE TEMPERATURE OF THE PREORM IS NOT ENOUGH FOR BLOWING , THE BLOWING SYSTEM OF THE MACHINE WILL NOT START . IT WILL AVOID WASTE THE PREFORM .
14. THE REJECT RATE OF THE BOTTLE LESS THAN 0.3% .

Container	Max Volume	L	2
	Max Neck Diameter	mm	38
	Max Container Diameter	mm	100
	Max Container Height	mm	300
	Cavity		4
	Theoretical Output	bph	4500-5500(350ML)
Electrical	Clamping force	KN	300
	Heating Power	KW	42
	Max Heating Power	KW	60
Air Compressor	Operating Pressure	Mpa	0.7
	Low Pressure Consuming	L/min	1400
	Blowing Pressure	Mpa	3.0
	High Pressure Consuming	L/min	2500-3000(**)
Chiller	Pressure	Mpa	0.3-0.5
	Temperature	ºC	8-10
	Flow Rate	L/min	30
Machine	Machine Size	m	3.2x1.83x2.03
	Machine Weight	Kg	3500
(**)Depending on bottle size, shape and weight. (*)Depending on bottle size and operation conditions.

---
