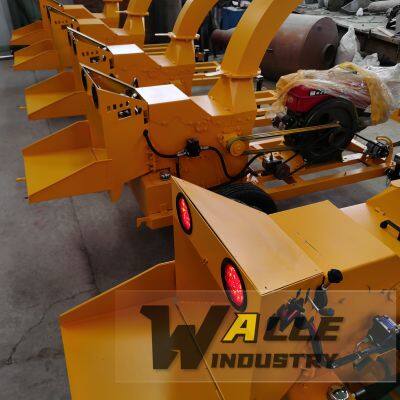

A tree branch crusher is an essential tool in the realm of forestry, landscaping, and waste disposal. It is a mechanical device engineered to transform bulky and cumbersome tree branches into more manageable and useful forms. This innovative equipment has significantly streamlined the process of dealing with tree debris, providing efficient and practical solutions for both residential and commercial applications.
| tree branch crusher parameter table |
| Model | Model 600 |
| Power | 32hp single cylinder diesel engine |
| Maximum rotor diameter | 300mm |
| Rotating speed of cutter | 2800RPM |
| Outer feed opening | 600*450mm |
| Inner feed opening | 300*200mm |
| Maximum branch cutting diameter | ≤120mm |
| Number of blades | 4 pieces |
| Blade material | 55siCr |
| Blade specification | 155*80*10mm |
| Hydraulic motor type | BMZ-400 |
| Feeding System | Hydraulic system feeding (PLC microcomputer intelligent system control) can be reversed positively |
| Equipment Support Type | Hard support (with lifting system) |
| Drag frame type | Hook type towing rack |
| Hydraulic Tank Capacity | 24L |
| Diesel Fuel Tank Capacity | 18L |
| Overall dimensions (length, width and height) | 2400*1400*1700mm |
| Theoretical Output | 1.2T/H |
| Design life | 15 years |
| Annual maintenance cost | 500 lubricant fluid (except wearing parts) |
Key Features
· Robust Construction: Built with high-quality, durable materials such as heavy-duty steel frames and sharp, wear-resistant blades. This ensures long-term reliability and the ability to withstand the rigors of continuous operation.
· High Crushing Efficiency: Capable of reducing branches of various diameters, from slender twigs to thick limbs, into uniform small pieces in a short period. The advanced crushing mechanism optimizes the cutting and shredding process, maximizing productivity.
· Adjustable Settings: Many models offer adjustable settings for the size of the output. Users can customize the degree of crushing according to their specific needs, whether it's for fine mulch or coarser wood chips.
· Easy Operation: Designed with user-friendliness in mind, featuring simple controls and convenient loading mechanisms. Minimal training is required for operators to start using the crusher effectively.
· Safety Features: Equipped with safety guards and emergency stop buttons to protect the operator from potential hazards. This gives users peace of mind during operation.
· Working Principle
· The tree branch crusher operates on a straightforward yet effective principle. The branches are fed into the hopper, where they are then drawn into the crushing chamber by a powerful rotating shaft. The shaft is fitted with sharp blades that cut and shred the branches as they pass through. The crushed material is then expelled through an output chute, ready for collection or further use.
Applications
· Landscaping: Creates beautiful and functional mulch that helps retain soil moisture, suppress weeds, and add nutrients to the soil as it decomposes. It can also be used to shape and define garden beds and pathways.
· Waste Disposal: Reduces the volume of tree waste, making it easier and more cost-effective to transport and dispose of. In some cases, the crushed branches can be recycled or composted, reducing the environmental impact.
· Biomass Energy Production: The crushed wood can be used as a source of biomass fuel, which can be converted into heat or electricity. This provides a sustainable alternative to fossil fuels.
· Agriculture: Can be used to process orchard prunings and other agricultural waste, converting it into valuable resources for livestock bedding or soil amendment.
1. What is a Tree Branch Crusher?
A tree branch crusher is a specialized piece of machinery that plays a crucial role in the management of tree waste. It is designed to take in tree branches of different lengths and thicknesses and break them down into smaller fragments. This process not only helps in reducing the volume of bulky branches but also transforms them into materials that can have various practical uses.
2. Outstanding Features
· Powerful Motor: Equipped with a high-performance motor, the crusher can generate sufficient power to handle tough branches with ease. It ensures a smooth and continuous crushing operation, even when dealing with hardwood branches.
· Precision Blades: The crusher is fitted with sharp and durable blades that are engineered for efficient cutting. These blades can slice through branches cleanly and precisely, resulting in uniform-sized crushed pieces.
· Self-Feeding System: Many modern tree branch crushers come with a self-feeding mechanism. This allows for a more convenient and safer operation as the branches are automatically drawn into the crushing chamber, reducing the need for manual pushing and minimizing the risk of operator injury.
· Compact and Portable Design: Some models are designed to be compact and portable, making them suitable for both small-scale residential use and on-site work in larger landscapes or forests. They can be easily transported and maneuvered, providing flexibility in different working environments.
3. How It Works
The operation of a tree branch crusher is relatively straightforward. First, the branches are placed near the hopper or feeding inlet. The self-feeding system, if available, then pulls the branches into the crushing chamber. Inside the chamber, the rotating blades start to cut and crush the branches. As the branches are processed, they are gradually reduced in size and pushed out through an exit chute. The crushed material can be collected in a container or directly spread in the desired area.
4. Wide Range of Applications
· Garden and Landscape Enhancement: The crushed branches can be used as a natural mulch in gardens. It helps to insulate the soil, retain moisture, and add organic matter as it decomposes over time. It can also be used to create decorative paths or borders in landscapes.
· Composting: When mixed with other organic materials such as leaves and grass clippings, the crushed branches contribute to the composting process. They provide a good source of carbon, which is essential for a balanced compost pile.
· Fuel Source: In some cases, the crushed wood can be used as a fuel for small-scale heating systems or biomass boilers. It offers an alternative and renewable energy option, especially in rural or off-grid settings.
· Animal Bedding: The crushed branches can be used as bedding material for livestock such as horses, cows, or poultry. It provides a comfortable and absorbent surface for the animals.
5. Advantages
· Efficient Space Management: By reducing the volume of tree branches, it helps to free up valuable storage and disposal space. This is particularly important for landscaping companies or municipalities dealing with large amounts of tree waste.
· Cost Savings: Instead of paying for expensive waste disposal services, the crushed branches can be repurposed, saving costs in the long run. Additionally, using the crusher can reduce the need for purchasing commercial mulch or other landscaping materials.
· Environmental Protection: It promotes the recycling and reuse of natural resources, reducing the amount of waste that ends up in landfills. This, in turn, helps to minimize the environmental impact associated with waste disposal and contributes to a more sustainable ecosystem.
In summary, a tree branch crusher is a valuable tool that offers multiple benefits in terms of waste management, resource utilization, and cost-effectiveness. Whether for a homeowner with a small garden or a large-scale landscaping or forestry operation, it provides an efficient solution for dealing with tree branches.
