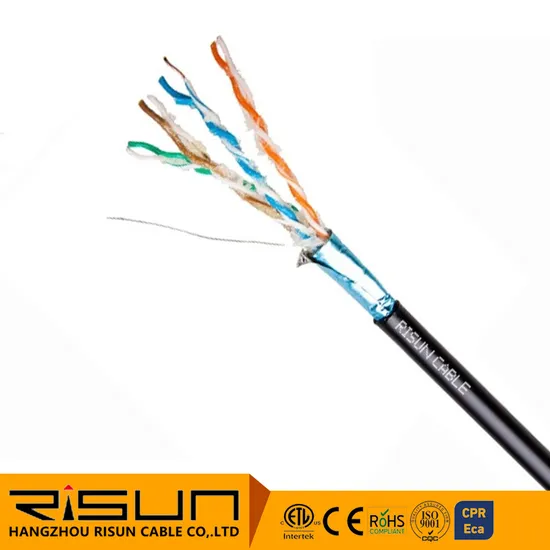

CAT6 F/UTP Bare Copper Communication Cable, 4-Pair, 1000FT

Product Description

Product Description
CAT6 U/UTP Bare Copper Communication Cable, 4-Pair,1000ft CPR UL, ETL, CE PVC/LSZH/PE
Risun Cable is specialized in producing UTP Cat5e, UTP Cat6, FTP Cat5e, FTP Cat6, Telephone Cable, Alarm Cable and Coaxial Cables.
1. All of products we offer are top quality and competitive price;
2. If there is no special explanation, all of our Brand are RISUN or OEM;
3. Payment: We accept T/T and L/C;
4. Packing:
1) Packing Lengths: 305m/roll, or other lengths available according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull box
4) Other packing available according to client's request.
5. Any question, please contact us without hesitation. We'll reply as soon as we can.

Construction
Conductor	24AWG(Solid or Strand) CU/CCA/CCS
Insulation	HDPE 0.90± 0.06mm
Cores/Pairs	8/4
Sheath	5.20+/-0.1mm PVC (FR,RoHS,UV)/ LSOH / PE

Mechanical Properties
Elongation	Min. 300%
Temperature Range	-20 up to +75° C
Tensile strength	Min. 1.68Kg/mm2

Electrical Properties (at 20°C)
Conductor Resistance	Max. 9.38 ohm/100m
Resistance Unbalance	Max. 2%
Insulation Resistance	150 ohm/KM
Mutual Capacitance	Max. 5600pF/100m
Cpacitance Unbalance	Max. 330pF/100m
Impendance	100+/-15 ohm
Spark Test	2000V
Velocity Propagation	67%

	Attenuation	RL	Next	PS Next
(MHz)	(db/100m)	(db)	(db)	(db/100m)
1MHz	2.0	20	65.3	63.5
4MHz	4.1	23	56.3	54.2
8MHz	5.8	24.5	52.4	50.5
10MHz	6.6	25	51.3	49.2
16MHz	8.2	25	49.3	47.4
20MHz	9.3	25	48.8	46.9
25MHz	10.4	24	45.3	43.4
31.25MHz	11.7	23	43.0	41.8
62.5MHz	17.0	21	39.2	37.2
100MHz	22.0	20	36.3	34.4
155MHz	28.1	19	35.5	33.6
200MHz	32.4	19	31.8	29.9
240MHz	36.0	18	30.6	28.7
300MHz	41.0	18	29.2	27
350MHz	44.9	17	28.0	25.6

Detailed Photos
Packaging & Shipping
RISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.
Application
Certifications
Product Line
RISUN has two complete production line. 10 thousands box of UTP Cat5e cable per month.

Company Profile About us
Hangzhou Risun Cable Co., Ltd specializes in manufacturing lan cable, network cable, alarm cable and telephone cable.
1. All of products we offer are top quality and competitive price;
2. If there is no special explanation, all of our Brand are RISUN or OEM;
3. Payment: We accept T/T and L/C;
4. Packing:
1) Packing Lengths: 305m/roll, or other lengths available according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull box
4) Other packing available according to client's request.
5. Any question, please contact us without hesitation. We'll reply as soon as we can.

Features
Independently tested and verrified by ETL Humanized Design Full series Keystone Jack supported Separated structure inside the cable ensures the stable transmission of data. Competitive Advantage For quality, our superior raw material, skilled production team, advanced equipment and mature quality control system could assure you of that we could offer the cable with high and consistent quality. For price, our offer can be much more competitive than other suppliers such as the trading company, as we have our own factory. For production capacity, we could produce 30 million meters cable monthly, which will assure you of prompt delivery of the goods. Certificates: ISO, CE, CCC,ETL, RoHS ,ANATEL & UL approval.
FAQ
- Q1: Are you a factory or trading company?Link: We are a Factory, Distributor.- Q2: Can I get a sample from you?Link: Of course.we are highly glad to offer sample and welcome to test our productions- Q3: What is the leading time?Link: Sample order is 1-2 weeks, bulk order is about 20 days - Q4: Can you provide OEM products with my brand and logo?Link: No problem. Just send us your brand Letter of Authorization.- Q5: Where is your factory located? How can I visit there?Link: Our factory and office is located in Ningbo City, China.You can fly to Ningbo airport or Shanghai airport.
If needed, we'd like to help you to book hotel and pick you up from the airport or train station.
Warmly welcome to visit us!- Q6: How does your factory do regarding quality control?Link: Quality is priority.We always attach great importance to quality controlling for to the very end.
Our factory has gained CE,ROHS,SGS authentication.

---
