Steel Frame CAD Machine for Villa House

Product Description

Light gauge steel framing systems consist of structural frames fabricated using cold formed steel sections. They can be used throughout a structure, including load-bearing exterior walls, non-load bearing interior walls, floor joists, curtain walls and roof trusses.The system automatically generates wall and floor fabrication drawings, structural layouts, cut lists and other material reports.By automating these processes, manufacturers save a lot of time in drafting, material reporting, data entry, manufacturing, and correcting all errors.
We offer a complete range of machines for light gauge steel framing. Simply provide the profile, thickness, or any specific requirements you have, and we will provide you with customized solutions.

Top Selling	Premium at a Discount	Adjustable Multiple Profile
Suitable for 1-3 floors building	Suitable for beginners	Suitable for multiple floor building

Producing Process Flow

Profile Dimensions

Profile Model	C Section(mm)			Thickness
	Web	Flange	Lip
C89	89	38	9	0.6-1.2mm

Real Customer FeedbackReal Customer's Project
Light gauge steel framing machines are used to create the structural framework of buildings by cold forming steel sections into columns, beams, studs, tracks, and joists. These machines can be used in a variety of applications, including:residential and commercial construction,Prefab and modular house, warehouses and manufacturing facilities etc.

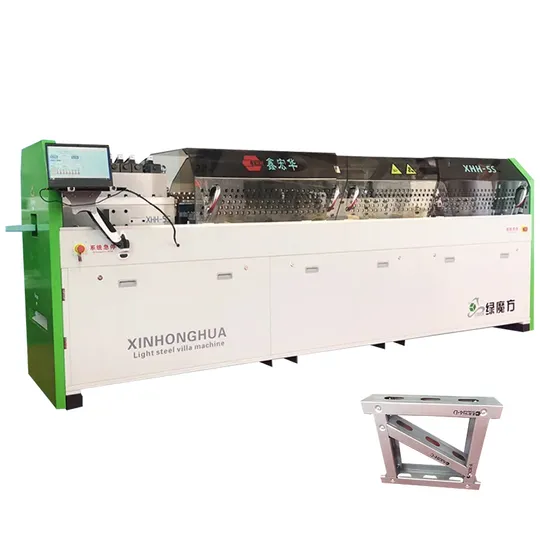

Machine Picture
Technical Parameters

Size	C89
Dimension	4200*800*1100mm
Main Servo Motor Power	7.5KW
Hydraulic Motor	7.5kw
Forming Steps	9Steps
Forming Speed	4-5tons/8hours
Voltage	380V/50HZ/3PH
Effective Width	89mm
Material Width	174mm
Tolerance for cutting and punching	±0.5mm
Tolerance for forming	±0.75mm

Machine Components & Specifications

No.	Items	Quantity	Specifications
1	Steel Strip Uncoiler	1	Automatic Start-stop Device,Converter Motor Driven Coil Exterior Diameter:≤1300mm Rated Load:3T Main Motor Power:1.5kw Material Width:50-500mm Inner Diameter:450-530mm
2	Roll Former Machine	1	Machine Dimensions:4000x800x1100 Machine Weight:2.5T Forming Method :9 stations Drive Mode: Gear + Sprocket Main Motor: 7.5kw Servo Motor Roller Material:Gcr15 Main Shaft Material : 40Cr Forming Speed :2700m/hour(without punching & cutting) Production Capacity :4-5tons/8h(overall speed:including drywall panel, roof truss and floor joist)
3	Hydraulic Puncher/Cutter	6	Punching method:Post Punching(high precision performance on position & dimension) Die Material:Cr12mov; Cutting method:Forming Cutter,Blanking shear with three blades; Material of blade:Cr12mov; surface treatment:CNC semi-finishing ,Vacuum treatment to 58-60HRC CNC refining
4	Hydraulic Station	1	Hydraulic Motor Power:7.5kw Tank Capacity:180L Inlcuding compression refrigeration system
5	Controlling System	1	Laptop Computer 1 set PLC controller 1 set NC controlling software Punching Position Controlling Cutting Position Controlling Production Batch Quantity Controlling Batch Detail Quantity Controlling Any time monitoring during production Remote control and maintenance
6	Label Printer	1	can print LOGO,Picture,Chinese,English,figure
7	Layout Table
8	Tool
9	Spare parts
10	User Manual 1 copy

Service
1. Factory Lifetime Service:offer technical support for the entire life of our machines.
2. Customized Profile:can design the profile according to customer request.
3. One-Year Guarantee Period:we could supply you the replacement parts free of charge for any damaged parts caused by quality problems.
4. Overseas Services Optional:we can send our technicians to install and train the workers in the clients' factories with extra cost.
Package
For different machines or production line parts, we have different packing solutions:
- For the machine or production line, we will use plastic film to cover and wrap. Then will be loaded to the container by forklift or crane.
- For the key parts such as the roll forming rollers set, we will use the metal frame to package.
All Steadily fastened in the container in a suitable manner with steel ropes and locks, being suitable for long-distance transportation.
Our Factory
XIAMEN XINHONGHUA MACHINERY CO. LTD.(FUJIAN XINHONGHUA MACHINERY CO. LTD) was founded in 2004.as the earlier company which engaged in the manufacture of cold roll forming machines,after the reform and innovation of more than 19 years,and on basis of manufacture of modern management concepts,strong technology,advanced production technology,perfect service system,we have been currently in the domestic leading position,and as good competitor among the same industry of world. Our company is located in the beautiful scenery,nice island of Xiamen.And have variety of products with stable performance,Always pay attention to improve the existing products and research and develop the new products.We have nearly 100 kinds of professional and technical personnel,with its strong ability of product design and development,to ensure a high level design of our product.For our products with light structure, reasonable design and updating styles,so we become well-know in the steel structure industry.

---
