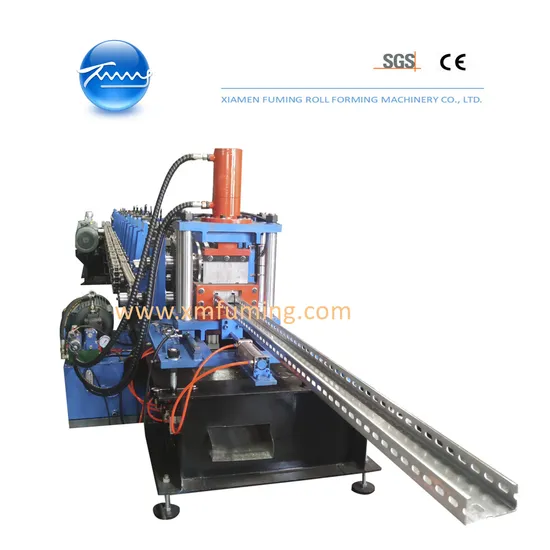

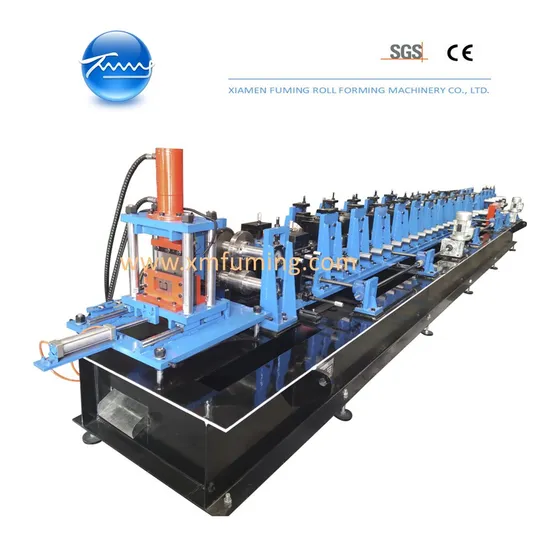

| ROLL FORMING MACHINE FOR CU PURLIN |
|
| Material Specification |
| Thickness | 3.0mm |
| Size | C120*60*60*10,80*40*40*10/U40*40*40*3,60*25*25,50*20*20 |
| Material | GI |
| Yield strength | 250MPa |
| |
| Machine Components |
| 5Ton*600mm Hydraulic Decoiler |
| Coil inner hole expanding | Hydraulic system, 3KW pump motor |
| Speed regulating | Frequency inverter, 3KW motor |
| Expanding type | Taper wedge expanding system |
| Load capacity | Max.5Tons |
| Coil inner diameter | 510±30mm |
| Coil outer diameter | Max.1600mm |
| Coil width | Max.600mm |
| Stop/start rotation | Automatic stopping device with limited switch to assist |
| Option | Please refer to Decoiler on home page |
| |
| 63 Tons Punch Press |
| Servo motor to feed in | 1.7KW×1 |
| Stroke | 250mm |
| Punching mould material | Cr12Mov, heat treatment |
| | |
| |
| Roll Forming Machine |
| Driving system | Gear/sprocket |
| Forming station | 16 stages |
| Roller material | Cr12, heat treatment, HRC58~62 |
| Option for roller material | Cr12Mov |
| Shafts Diameter | Φ75mm |
| Servo motor to drive | 22KW |
| Motor for size changing | 1.5KW×1+0.75KW×2 |
| Speed | Approx. 15m/min(cutting time is not considered) |
| |
| Hydraulic Post Cutting Device |
| Cutting device is movable on the linear rail | |
| Cutting type | Slug breaker |
| Cutting tool material | Cr12, Heat treatment |
| Hydraulic station | 7.5KW |
| | |
| PLC Control System |
| Function | Control quantity, punching and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Schneider or Delta |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2mm |
| Control Voltage | 24V |
| |
| Product Rack | Un-powered, 3 meters long |
