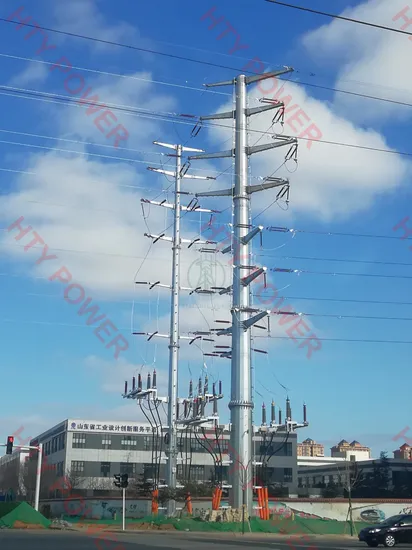

HTY Power specializes in the design and manufacture of monopole transmission line towers.
The design is in compliance with ASCE/SET standards via PLS POLE/TOWER.
On-site engineering service can also be provided if required. Product Description
| Shape | Round, Conical, Polygonal, Taper, Tubular, 8 sides, 12 sides, 16 sides |
| Voltage | 3KV-330KV |
| Material | Steel Q235B, Q345B, Q420B, Q460C, GR65, or upon requirements |
| Thickness | Up to 35mm(Q345B), 24mm(ASTM A572 GR65) |
| Galvanization Thickness | 86um or customized |
| Coupling Method | Slip joints or flange joint |
| Surface Treatment | Hot dip galvanizing or painting |
| Standard | ISO9001: 2008, China National Standard |
| ITEMS | Steel Grades/ Standards |
| Tower Legs | Chinese steel Q345B, same to ASTM A572 GR50 |
| Webs, Bracing, Unstressed Plate, Angle Steel | Chinese Q2230B, same to ASTM A36 |
| Plates | Chinese steel Q345B, same to ASTM A572 GR50 |
| Bolts | Chinese grade 6.8 and 8.8, same to ASTM A394 |
| Others | A) Dimension and tolerance for angle are according to GB/T1591-1994, similar to EN 10056-1/2.
B) Hot dip galvanization is in accordance with GB/T13912-2002, similar to ASTM A123
C) The welding will be performed in accordance with AWS D1.1 or CWB standard |
1. Strict quality control system and abundant technical reserves have created world-class products;2. The factory has completed tens of thousands of project cases so far, so that we have a wealth of technical reserves;3. Facilitating supports and low labor cost make the product price have great advantages in the world;4. With a number of patented technologies and a mature drawing and drawing team, you can rest assured of your choice;5. China Power Grid Certification Level 1 supplier, you can safely choose and cooperate;6. We are not only manufacturers and suppliers, but also your partners and technical support.
