Wire sling swagging machine

Product Details

Product Description

Product Description

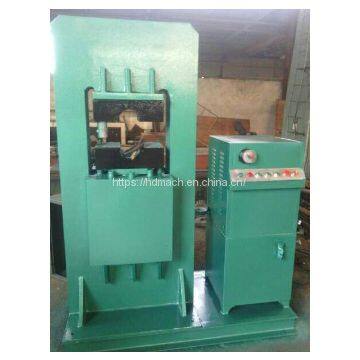

Wire rope sling swaging machine is widely used for wire rope industry. It has features of
1.high junction strength and large working load limited
2 perfect pressed shape
3 excellent cauterization resistance
4 saving wire rope cost
5 ensure the exact length
6 advanced procession and efficiency
7 good solution to rigging works with limited working space
8 widely used in steel, transportation and building industry
9 easy to operate

Mode No.	YS-100	YS-200	YS-350T	YS-500T	YS-650T	YS-1000T
Max press power (KN)	1000	2000	3000	5000	6500	10000
Max wire rope diameter in one pressing (mm)	Φ13	Φ20	Φ26	Φ32	Φ38	Φ44
Max wire rope diameter in multi-pressing (mm)	Φ15	Φ22	Φ34	Φ42	Φ48	Φ56
Power (KW)	1.5	2.2	3.7	4	5.5	11
Max working pressure (Mpa)	56Mpa	56Mpa	56Mpa	56Mpa	56Mpa	56Mpa
Max piston movement (mm)	78	80	80	120	160	200
The up speed of piston (mm/sec)	8	8	4.5	4.5	4.5	4.8
The down speed of piston (mm/sec)	10	10	4.5	8	8	10
Total length (mm)	1100	1100	1200	1500	1650	2550
Total width (mm)	550	550	600	610	650	1100
Total height (mm)	1300	1300	1400	1600	1600	2100
Net weight (kg)	600	900	1000	2000	3000	5500

---
