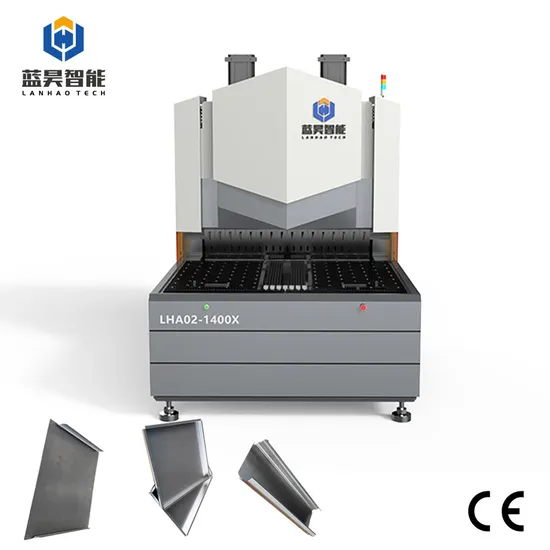

Lha-1400xc Automatic Panel Bender for Metal Sheet Fabrication

Product Description

Product Description Lanhao flexible panel bender focuses on solving all kinds of complex sheet metal and bending problems in metal forming. Through the multi-axis concurrent linkage, the sheet metal bending can be completed automatically, and the dependence on the mold and labor can be solved from the technical point of view, so as to effectively improve the production efficiency and reduce the production cost.Easily realize the bending requirements of arc, dead edge, return type, closed type and other complex types of sheet metal.Lanhao flexible panel bender can be widely used in the field of steel cabinet housing (file cabinet, tool cabinet, outer shield, electrical cabinet, communication cabinet, gas cabinet, water meter cabinet......) , kitchenware (refrigerators, air conditioners, cooking appliances...) , furniture, ventilation, refrigeration, purification, door industry, decoration, elevator and other related metal forming fields.
LHA-XC-05 series intelligent flexible panel bender, using the pressure arm loading method, the whole machine is designed and produced in accordance with the standard of high-precision machine tools. Mesh, corrugated, hollowed out and all kinds of flat or special-shaped metal sheet work pieces are suitable, with automatic Pressing arm Auto-location adaptation, oblique location adaption, dual C-axis rotation and other functions, with a wider range of applications.
Product Parameters

Parameters	LHA-1000XC	LHA-1400XC
Max bending speed	0.2 second /time	0.2 second /time
Max. bending width	1000mm	1400mm
Bending hight	170mm	170mm
Rated voltage	380v	380v
Total Motor power	about 27Kw	about 36Kw
average power	about 1.2Kw	about 1.6Kw
noise	about 50dB	about 50dB
machine size	about 285*150*280cm	about 365*190*290cm
Total machine weight	about 7t	about 10t
Max. bending thickness (thicker panel customizable)	UST 515N/mm2 201 stainless steel 0.8mm	UST 515N/mm2 201 stainless steel 0.8mm
	UST 515N/mm2 304 stainless steel 1.0mm	UST 515N/mm2 304 stainless steel 1.0mm
	UST 410N/mm2 cold panel 1.2mm	UST 410N/mm2 cold panel 1.2mm
	UST 515N/mm2 aluminum panel 1.6mm	UST 515N/mm2 aluminum panel 1.6mm
minimum material thickness	about 0.35mm	about 0.35mm
four sides forming minimum inner size	about 140*210mm (only for replaceable suction cup)	about140*210mm(only for replaceable suction cup)
two sides forming minimum inner side	about 140mm	about 140mm
Max. bending size	about 1000*1000mm	about 1400*1400mm
axis quantity	standard synchronized 11 axis	standard synchronized 11 axis
power horn blank holder	optional	optional

Certifications

Company Profile
Packaging & Shipping
After Sales Service 1. After the equipment is checked and accepted, the quality guarantee period of the whole machine is one year
2. During the warranty period of the equipment, our company is responsible for free replacement or maintenance of parts due to the quality of the equipment itself, except for conventional consumables (such as suction cups) and those that are responsible for the user's illegal operation.
3. Our company provides life-long maintenance services for the products provided, and provides daily consultation and guidance related to equipment at any time. Outside the warranty period, our company still provides extensive and preferential technical support and spare parts supply for the buyer. For each device, our company will establish a uniquely coded "user profile" to track and record the relevant information of the user using the equipment. Our company will promptly notify the buyer of the software upgrade situation. Except for new requirements, we provide daily software upgrade services free of charge.
4. Our company has sufficient spare parts and accessories, which can provide technical services and spare parts services to the buyer in time to meet the needs of equipment maintenance.
5. If you want to know more about the product, please log in to our website or contact the after-sales staff labeled on the equipment, we have a professional team to serve you wholeheartedly.

---
